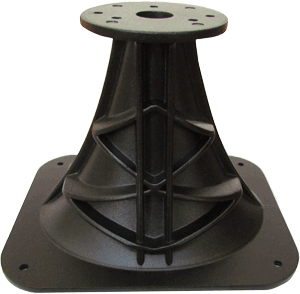

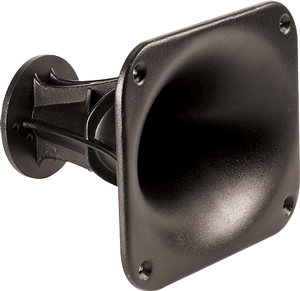

FAITAL PRO LTH102 - 1" LONG ELLIPTICAL TRACTRIX HORN
|
|
|
FAITAL PRO LTH102 - 1" LONG ELLIPTICAL TRACTRIX HORN |
|
HELPS DELIVER VERY FEW REFLECTIONS & LESS COLORATION THAN STANDARD HORNS! |
|
|
|
FAITAL PRO LTH102 |
|
Item Price: $128.95 |
|
|
HORN
MODEL |
|
|
Specifications |
|
| Type |
|
|
Throat Size |
1" |
|
Frequency Response |
800Hz
- 20kHz |
| Recommended Crossover Freq. | 1kHz |
| Dispersion |
60°H x
50° |
| Construction | Cast Aluminum |
|
Net Weight |
2.65
lbs. / 1.2kg |
|
Shipping Weight |
3.2 lbs. / 1.65kg |
|
Mounting Information |
|
| Overall Width | 9.25" / 235mm |
| Overall Height | 7.44" / 189mm |
|
Overall
Depth |
6.76" / 171.6mm |
| Cutout Width | 8.11" / 206mm |
| Cutout Height | 6.29" / 160mm |
| Mounting Type | Bolt On |
| Horn Mounting Screw Hole(Left to Right) | 7.57" / 192.4 mm |
| Horn Mounting Screw Hole(Top to Bottom) | 5.83" / 148 mm |
| High Frequency Mounting Hole Diameter | |
| 3 Holes Equally Spaced On Diameter | 2.25" / 57.2 mm |
| 2 Holes Equally Spaced On Diameter | 3" / 76.2 mm |

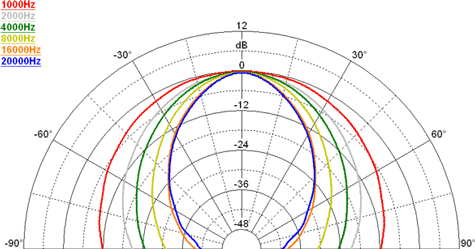

| Horizontal Polar Pattern | |
 |
|

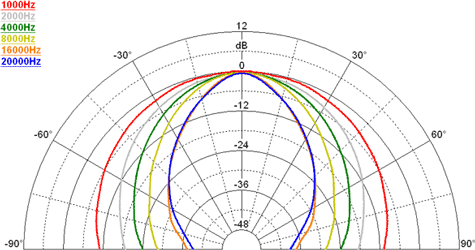

| Vertical Polar Pattern | |
 |
|

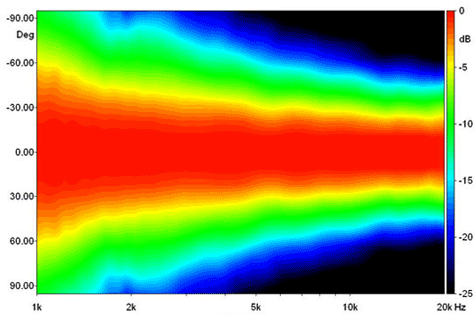

| Horizontal Beamwidth | |
 |
|

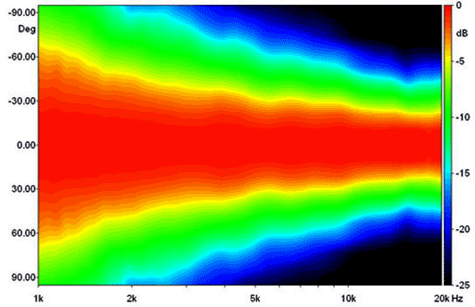

| Vertical Beamwidth | |
 |
|
| Directivity Index | |
 |
|
| Beamwidth | |
 |
|

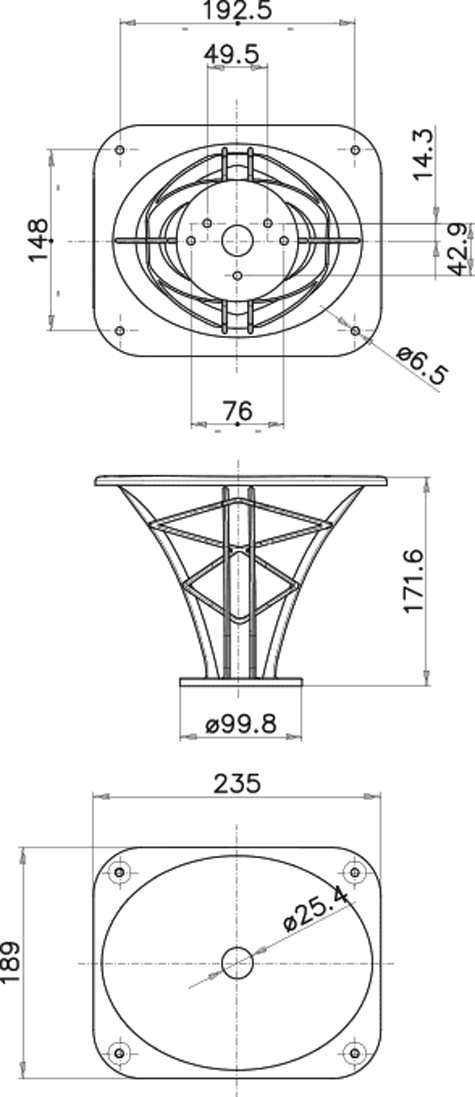

| Dimensions | |
 |
|

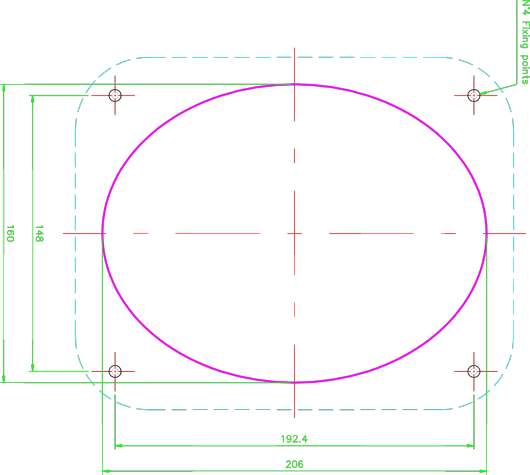

| Baffle Cutout Dimensions | |
 |
|
