FAITAL PRO LTH142 - 1.4" LONG ELLIPTICAL TRACTRIX HORN
|
|
|
FAITAL PRO LTH142 - 1.4" LONG ELLIPTICAL TRACTRIX HORN |
|
HELPS DELIVER VERY FEW REFLECTIONS & LESS COLORATION THAN STANDARD HORNS! |
|
|
|
FAITAL PRO LTH142 |
|
Item Price: $151.95 |
|
|
H.F. DRIVER
MODEL |
|
|
Specifications |
|
| Type |
|
|
Throat Size |
1.4" |
|
Frequency Response |
500Hz
- 18kHz |
| Recommended Crossover Freq. | 800Hz |
| Dispersion |
60°H x
50° |
| Construction | PC/ABS |
|
Net Weight |
1.96
lbs. / .89kg |
|
Shipping Weight |
3.17 lbs. / 1.44kg |
|
Mounting Information |
|
| Overall Width | 13.8" / 350mm |
| Overall Height | 9.5" / 240mm |
|
Overall
Depth |
6.76" / 171.6mm |
| Cutout Width | 12.6" / 320mm |
| Cutout Height | 8.66" / 220mm |
| Mounting Type | Bolt On |
| High Frequency Mounting Hole Diameter | |
| 4 Holes Equally Spaced On Diameter | 4" / 101.6 mm |

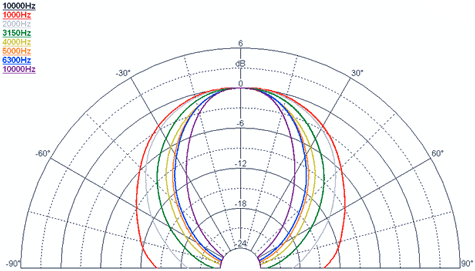

| Horizontal Polar Pattern | |
 |
|

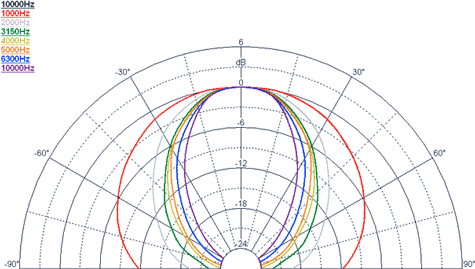

| Vertical Polar Pattern | |
 |
|

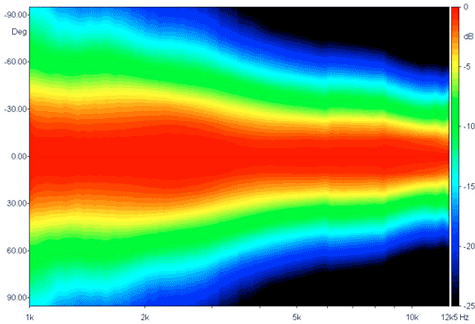

| Horizontal Beamwidth | |
 |
|

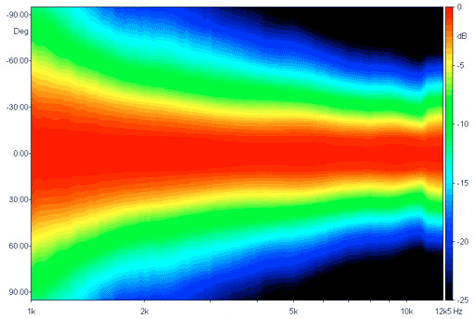

| Vertical Beamwidth | |
 |
|

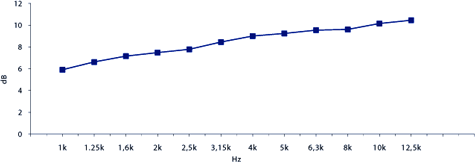

| Directivity Index | |
 |
|

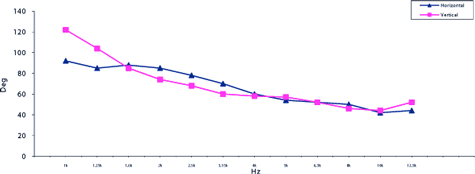

| Beamwidth | |
 |
|

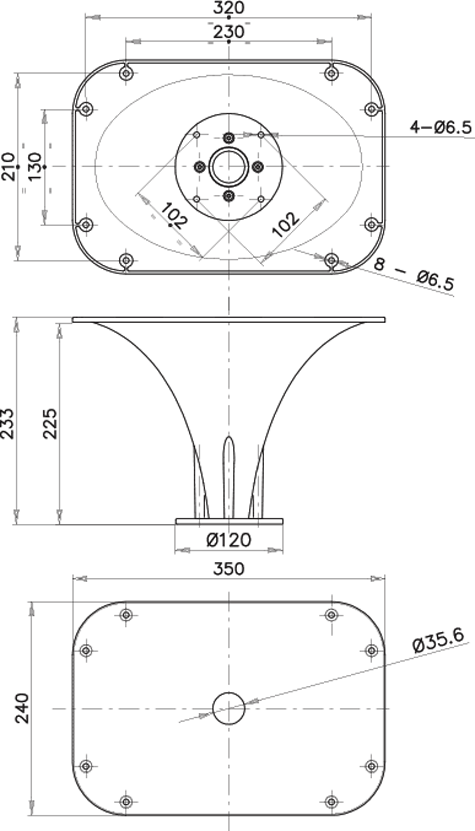

| Dimensions | |
 |
|
