FAITAL PRO WG101 - 1" WAVEGUIDE HORN

FAITAL PRO WG101 PLANE WAVEGUIDE HORN FOR LINE ARRAY SPEAKER SYSTEMS!

Faital Pro WG101

FAITAL PRO WG101

Item Price: $68.95

HORN MODEL  - WG101

Specifications

Type Plane Waveguide

Throat Size

1" / 25.4mm

Frequency Response

1kHz - 20kHz

Recommended Crossover Freq. 1.6kHz
Dispersion 140H x 60 V
Construction Cast Aluminum
Net Weight 1.06 lbs. / .48kg
Shipping Weight 1.1 lbs. / .5kg

Mounting Information

Overall Width 3.39" / 86mm
Overall Height 4.81" / 189mm
Overall Depth 4.33" / 110mm
Cutout Width & Height See Baffle Cutout Below
Mounting Type Bolt On
Horn Mounting Screw Hole(Left to Right) 2.99"  /  76 mm
Mounting Hole Diameter .26"  /  6.5 mm
High Frequency Mounting Hole Diameter
2 Holes Equally Spaced On Diameter 3"  /  76.2 mm

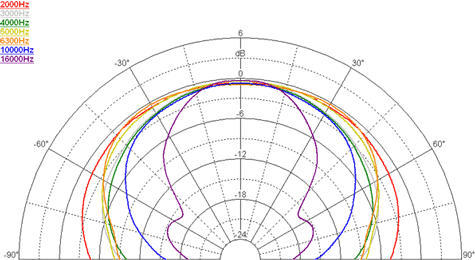

Horizontal Polar Pattern
Faital Pro WG101

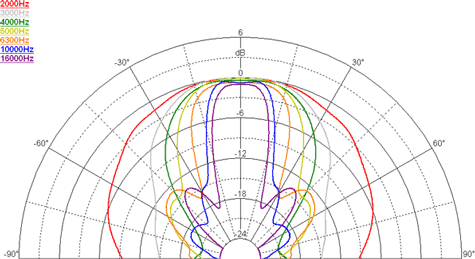

Vertical Polar Pattern
Faital Pro WG101 Vertical Polar

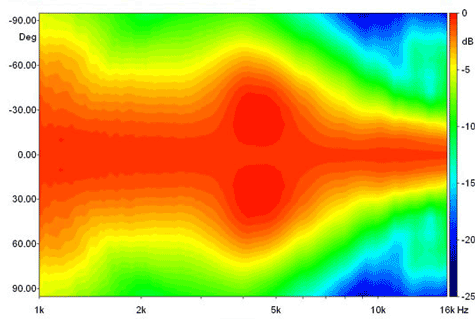

Horizontal Beamwidth
Faital Pro WG101 Horizontal Beamwidth

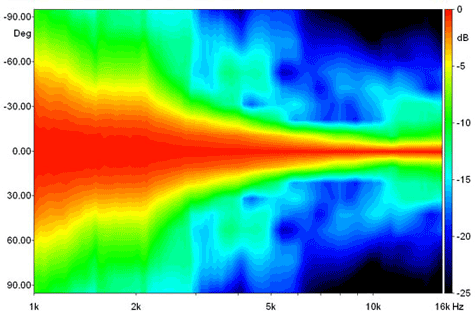

Vertical Beamwidth
Faital Pro WG101 Vertical Beamwidth

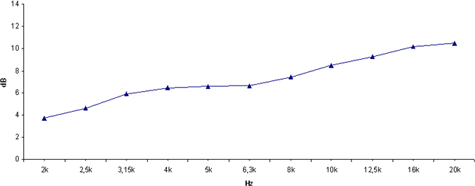

Directivity Index
Faital Pro WG101 Directivity

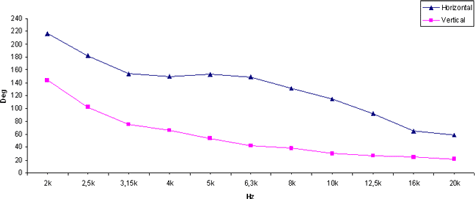

Beamwidth
Faital Pro WG101 Beamwidth

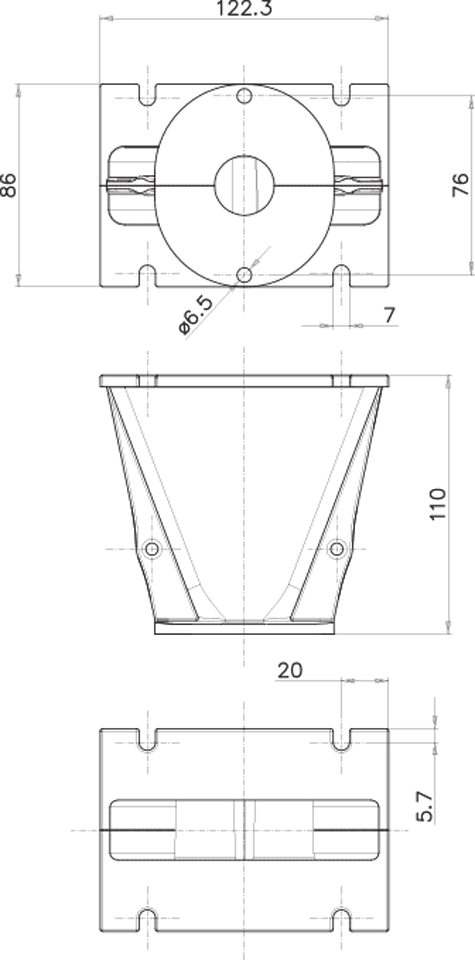

Dimensions
Faital Pro WG101 Drawing

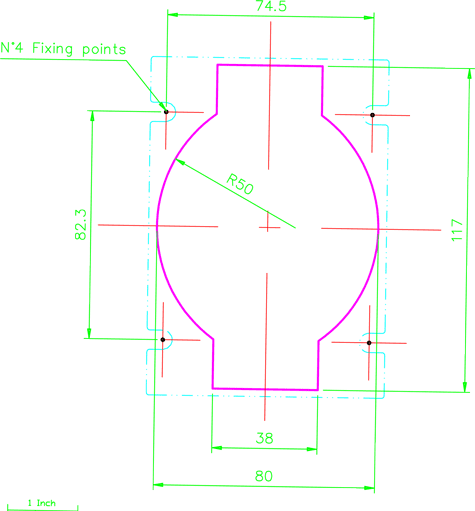

Baffle Cutout Dimensions
Faital Pro WG101 Cutout
