FAITAL PRO WG141 - 1" WAVEGUIDE HORN
|
|
|
FAITAL PRO WG141 - 1" WAVEGUIDE HORN |
|
FAITAL PRO WG141 1.4 INCH EXIT PLANE WAVEGUIDE HORN FOR LINE ARRAY SPEAKER SYSTEMS! |
|
|
|
FAITAL PRO WG141 |
|
Item Price: $161.95 |
|
|
HORN
MODEL |
|
|
Specifications |
|
| Type | Plane Waveguide |
|
Throat Size |
1.4" |
|
Frequency Response |
800Hz
- 20kHz |
| Recommended Crossover Freq. | 800Hz |
| Dispersion | 140°H |
| Construction | Cast Aluminum |
|
Net Weight |
3.1
lbs. / 1.4kg |
|
Shipping Weight |
3.6
lbs. / 1.65kg |
|
Mounting Information |
|
| Overall Width | 3.39" / 86mm |
| Overall Height | 5.1" / 130mm |
|
Overall
Depth |
7.9" / 200mm |
| Cutout Width & Height | See Baffle Cutout Below |
| Mounting Type | Bolt On |
| Horn Mounting Screw Hole(Top to Bottom) | 4.25" / 108mm |
| Mounting Hole Diameter | .28" / 7 mm |
| High Frequency Mounting Hole Diameter | |
| 4 Holes Equally Spaced On Diameter | 4" / 100 mm |

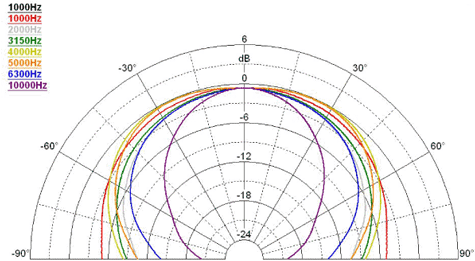

| Horizontal Polar Pattern | |
 |
|

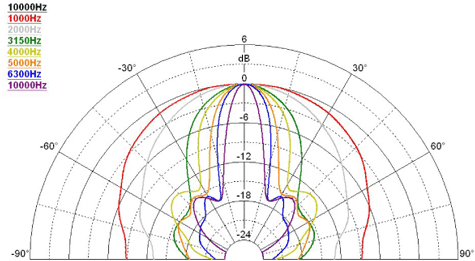

| Vertical Polar Pattern | |
 |
|

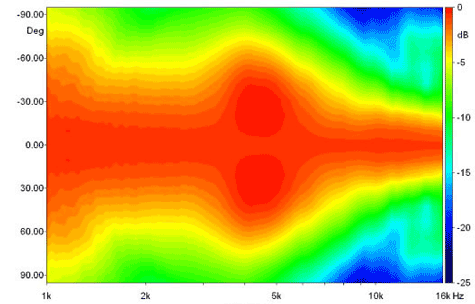

| Horizontal Beamwidth | |
 |
|

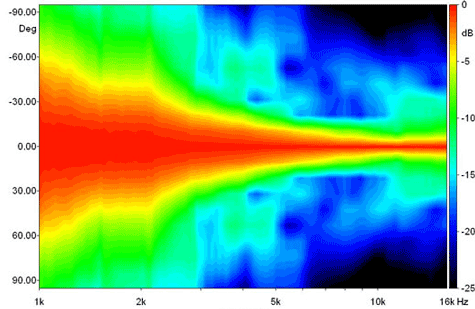

| Vertical Beamwidth | |
 |
|

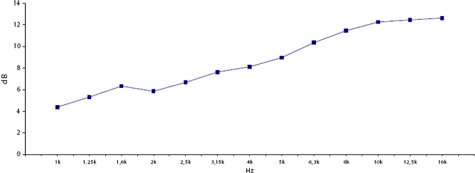

| Directivity Index | |
 |
|

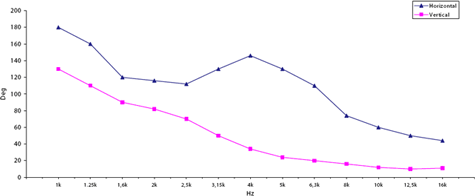

| Beamwidth | |
 |
|

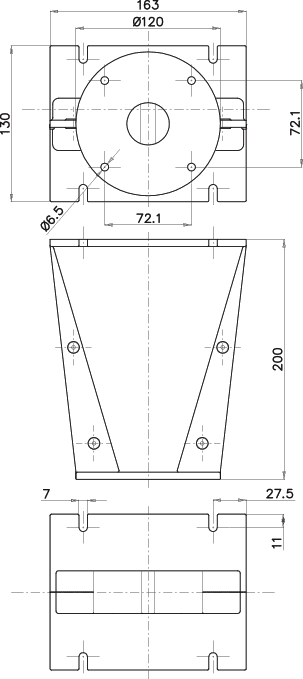

| Dimensions | |
 |
|
| Baffle Cutout Dimensions | |
 |
|
