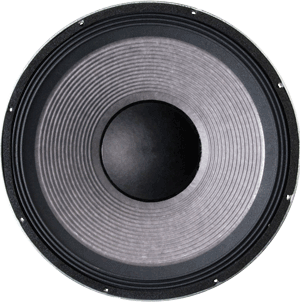

JBL 2269H - 18" DUAL COIL & NEODYMIUM DIFFERENTIAL DRIVE SPEAKER |
|
THIS JBL 2269H 18" SPEAKER DELIVERS A POWERFUL DEEP BASS WITH A 19MM XMAX THAT IS SUPER TIGHT! |
|
|
|
JBL 2269H - 8 ohms
Item Price: $1,079.00 |
|
WOOFER
MODEL |
JBL 2269H |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
18" |
|
Impedance |
8 ohms |
| AES Continuous Power (2 Hour) |
1,000
Watts |
| AES Program Power (2 Hour) | 2,000 Watts |
|
Frequency
Response |
28Hz
- 200Hz |
|
Sensitivity
(1W/1m) |
95dB |
|
Voice
Coil Diameter |
4"
/ 100mm |
|
Max.
Crossover Frequency |
200Hz |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 28 Hz |
|
Impedance (Re) |
5.3 ohms |
| Coil Inductance (Le) | 2.5mH |
| Mechanical Q (Qms) | 4.8 |
| Electrical Q (Qes) | .39 |
| Total Q (Qts) | .36 |
| Compliance Equivalent Vol. (Vas) | 237 Liters/8.37cu. ft. |
| Voice Coil Overhang (Xmax) | 19.0mm |
| BL Factor | 26.4 N/A |
| Moving Mass (Mms) | 294 Grams |
| Reference Efficiency | 1.2% |
| Effective Surface Area (Sd) | .1225 m2 |
|

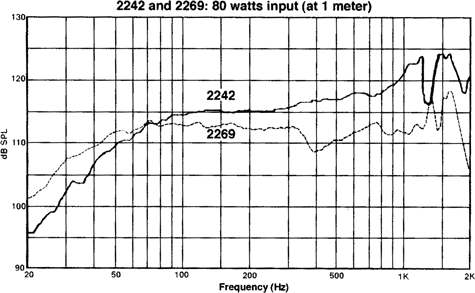

FREQUENCY RESPONSE GRAPH |
|
|
|
|
|

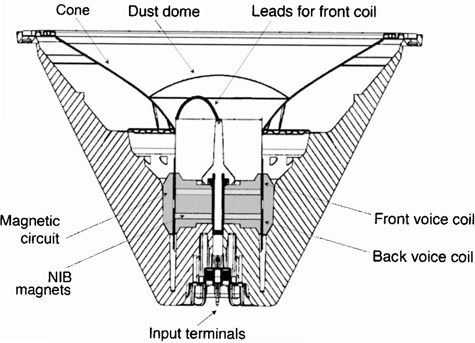

DRAWING |
|
|
|
|
