LEGEND 102K - LEAD GUITAR SPEAKER
|
|
|
LEGEND 102K - LEAD GUITAR SPEAKER |
|
THE EMINENCE LEGEND 102K IS CLASSIC 10" ALNICO SPEAKER W/ 35 WATTS RMS POWER HANDLING! |
|
|
Free UPS Ground Shipping in the U.S. |
Legend 102-8K |
|
8 ohms
Item Price: $134.99 |
|
|
SPEAKER MODEL |
Legend 102K |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
10.1"
/ 256mm |
|
Impedance |
8
ohms |
|
RMS
Power Rating |
35 Watts |
|
Usable
Frequency Response |
100Hz
- 5.5kHz |
|
Voice
Coil Diameter |
1"
/ 25.4mm |
|
Sensitivity
(1W/1m) |
97.4dB |
|
Magnet
Weight |
6
oz. Alnico |
| Net Weight | 2.9lbs. / 1.3kg. |
| Shipping Weight | 4lbs. / 1.8kg. |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 10.01" / 254.3mm |
| Bolt Circle Diameter | 9.6" / 243.8mm |
| Baffle Cutout Diameter | 9.05" / 229.9mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.22" / 5.6mm |
| Overall Depth | 4.8" / 123mm |
|
MATERIALS |
|
| Basket |
Pressed Steel |
| Voice Coil | Polyamide-Imide Coated Copper |
| Dust Cap | Solid Composition Felt |
| Cone | Paper |
| Surround | Paper Cone Edge |
| Magnet | Alnico |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 95 Hz |
| Impedance (Re) | 5.8 ohms |
| Coil Inductance (Le) | 0.51mH |
| Electromagnetic Q (Qes) | 1.61 |
| Mechanical Q (Qms) | 17.96 |
| Total Q (Qts) | 1.47 |
| Compliance Equivalent Vol. (Vas) | 31.5 Liters / 1.1cu.ft. |
| Voice Coil Overhang (Xmax) | 2.1mm |
| Surface area of Cone (Sd) | .03449m2 |
| BL Product (BL) | 5.7 T-M |
| Displacement Volume (Vd) | 72 cc |
| Diaphragm Mass Inc. Airload (Mms) | 15 grams |
| Mechanical Compliance (Cms) | .19mm/N |
| Efficiency Bandwidth Product (EBP) | 59 |

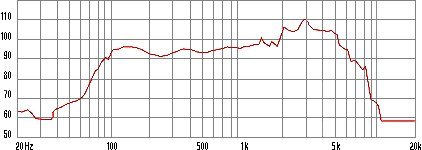

| FREQUENCY RESPONSE GRAPH | |
 |
|
