• THE EMINENCE LEGEND 875 IS AN AFFORDABLE ALL PURPOSE 4 OHM 75 WATT SPEAKER
• GREAT FOR PRACTICE AMPS, PORTABLE AMPS AND AS A GREAT REPLACEMENT IN SOME OF YOUR VINTAGE FAVORITES
• WORKS NICELY IN A 4 x 8 CABINET FOR ACOUSTIC APPLICATIONS

YOU'LL LOVE THE TONE FROM THE EMINENCE LEGEND 875 8" GUITAR SPEAKER!
SOLD OUT Item Price: $49.99

SPEAKER MODEL	LEGEND 875
Specifications
Nominal Basket Diameter	8" / 203.2mm
Impedance	4 ohms
RMS Power Rating	75 Watts

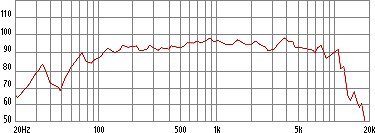

Usable Frequency Response	78Hz - 6kHz
Voice Coil Diameter	1.5" / 38.1mm
Sensitivity (1W/1m)	95dB
Magnet Weight	16 oz.
Shipping Weight	4.8lbs. / 2.2kg.
Mounting Information
Overall Diameter	8.24" / 209.2
Bolt Circle Diameter	7.75" / 196.9mm
Baffle Cutout Diameter	7.13" / 181mm
No. Of Mounting Holes	8
Mounting Hole Diameter	0.218" / 5.5mm
Overall Depth	3.58" / 91mm
Materials
Basket	Pressed Steel
Voice Coil	Polyamide-Imide Coated Copper
Dust Cap	Solid Composition Paper
Cone	Paper
Surround	Paper Cone Edge
Magnet	Ferrite
Thiele-Small Parameters
Resonant Frequency (fs)	88 Hz
Impedance (Re)	3.88 ohms
Coil Inductance (Le)	0.34mH
Electromagnetic Q (Qes)	.70
Mechanical Q (Qms)	4.27
Total Q (Qts)	.60
Compliance Equivalent Vol. (Vas)	18.7 Liters / .66cu.ft.
Voice Coil Overhang (Xmax)	1.3mm
Surface Area of Cone (Sd)	.02141m2
BL Product (BL)	5.9 T-M
Displacement Volume (Vd)	27 cc
Diaphragm Mass Inc. Airload (Mms)	11 grams
Mechanical Compliance (Cms)	.29mm/N
Mechanical Resistance (RMS)	1.47N*sec/M
Efficiency Bandwidth Product (EBP)	126
Impedance at Resonance (Zmax)	28 ohms
