LEGEND M12 - LEAD GUITAR SPEAKER
|
|
|
LEGEND M12 - LEAD GUITAR SPEAKER |
|
CLEAN BRIGHT SOUND & BITES JUST ENOUGH WHEN PUSHED! |
|
|
|
Legend M12-8 |
| 8 ohm
version SOLDOUT Item Price: $69.99 |
|
|
Legend M12-16 |
|
|
16 ohm version SOLDOUT Item Price: $69.99 |
|
|
SPEAKER MODEL |
LEGEND
M12 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
12"
/ 304.8mm |
|
Impedance |
8 or 16
ohms |
|
RMS
Power Rating |
120
Watts |
|

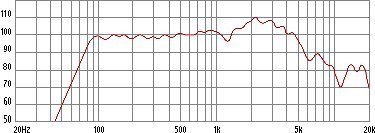

Usable
Frequency Response |
80Hz
- 5kHz |
|
Voice
Coil Diameter |
1.75"
/ 44.5mm |
|
Sensitivity
(1W/1m) |
101dB |
|
Magnet
Weight |
38
oz. |
| Shipping Weight | 9.6lbs. / 4.4kg. |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 12.02" / 305.2mm |
|
|
|
| Baffle Cutout Diameter | 10.97" / 278.6mm |
|
No.
Of Mounting Holes |
8 |
| Mounting Hole Diameter | 0.25" / 6.4mm |
|
Overall
Depth |
6.06" / 154m |
|
MATERIALS |
|
|
Basket |
Pressed Steel |
| Voice Coil | Polyamide-Imide Coated Copper |
| Dust Cap | Screened Cloth |
| Cone | Paper |
| Surround | Paper Cone Edge |
| Magnet | Ferrite |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 97 Hz |
|
Impedance
(Re) |
6.36 ohms |
| Coil Inductance (Le) | 0.59mH |
| Electromagnetic Q (Qes) | .87 |
| Mechanical Q (Qms) | 16.62 |
| Total Q (Qts) | .83 |
| Compliance Equiv. Vol. (Vas) | 32.6 Liters / 1.15cu.ft. |
| Voice Coil Overhang (Xmax) | .8mm |
| Surface Area of Cone (Sd) | .05067m2 |
| BL Product (BL) | 11.5 T-M |
| Displacement Volume (Vd) | 40 cc |
| Diaphragm Mass Inc. Airload (Mms) | 30 grams |
| Mechanical Compliance (Cms) | .09mm/N |
| Mechanical Resistance (RMS) | 1.09N*sec/M |
| Efficiency Bandwidth Product (EBP) | 112 |
| Impedance at Resonance (Zmax) | 128 ohms |
|
|
|
