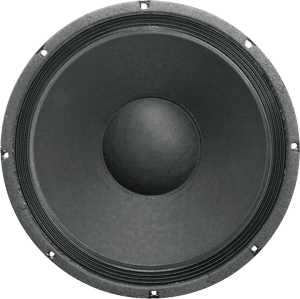

LEGEND BP1525 - 15' BASS GUITAR SPEAKER
|
|
|
LEGEND BP1525 - 15' BASS GUITAR SPEAKER |
|
THE EMINENCE LEGEND BP1525 15" BASS SPEAKER HAS A DEEP BASS WITH AN EXTENDED XMAX 0F 6.2MM! |
|
|
|
Item Price: $169.99 Free UPS Ground Shipping in the U.S. |
| SPEAKER MODEL |
L |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
15"
/ 381mm |
|
Impedance |
8 ohms |
|
RMS
Power Rating |
350
Watts |
| Program Power | 700 Watts |
|
Usable
Frequency Response |
35Hz
- 2.1kHz |
|
Voice
Coil Diameter |
2.5"
/ 63.5mm |
|
Sensitivity
(1W/1m) |
96.6dB |
| Air Gap Height | .31" / 7.9mm |
|
Magnet
Weight |
56 oz. |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 15.15" / 384.8mm |
| Bolt Circle Diameter | 14.56" / 369.8mm |
| Baffle Cutout Diameter | 13.9" / 353.1mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.28" / 7.1mm |
| Overall Depth | 6.61" / 168mm |
| Net Weight | 12 lbs. / 5.4kg. |
| Shipping Weight | 14 lbs. / 6.35kg. |
|
MATERIALS |
|
| Basket | Pressed Steel |
| Voice Coil Former | Polyimide |
| Voice Coil | Copper |
| Dust cap | Solid Composition Felt |
| Surround | Cloth |
| Magnet | Ferrite |
| Core Details | Vented & Extended |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 32 Hz |
| Impedance (Re) | 6.65 ohms |
| Coil Inductance (Le) | 1.12mH |
| Electromagnetic Q (Qes) | .5 |
| Mechanical Q (Qms) | 11.21 |
|
Total Q (Qts) |
.48 |
| Compliance Equivalent Vol. (Vas) | 397 Liters / 14.02cu.ft. |
| Voice Coil Overhang (Xmax) | 6.2mm |
| Surface area of Cone (Sd) | .08563 m2 |
| BL Product (BL) | 13.07 T-M |
| Displacement Volume (Vd) | 530.9 cc |
| Diaphragm Mass Inc. Airload (Mms) | 65 grams |
| Mechanical Compliance (Cms) | .39mm/N |
|
LEGEND BP1525 RESPONSE CURVE |
|
 |
|
