LEGEND 125-8 - GUITAR SPEAKER
|
|
|
LEGEND 125-8 - GUITAR SPEAKER |
|
THE EMINENCE LEGEND 125-8 IS AN EXCELLENT CHOICE FOR THAT CLASSIC BLUES SOUND & CLASSIC ROCK! |
|
|
|
Item Price: $129.99 Free UPS Ground Shipping in the U.S. |
|
SPEAKER
MODEL |
LEGEND
|
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
12"
/ 305mm |
|
Impedance |
8 ohms |
|
RMS
Power Rating |
75
Watts |
|

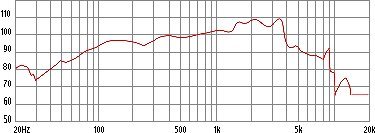

Usable
Frequency Response |
80Hz
- 4kHz |
|
Voice
Coil Diameter |
1.5"
/ 38.1mm |
|
Sensitivity
(1W/1m) |
100.1dB |
|
Magnet
Weight |
34
oz. |
| Net Weight | 7.8lbs. / 3.5kg. |
| Shipping Weight | 9.9lbs. / 4.5kg. |
|
MOUNTING INFORMATION |
|
|
|
12.02" / 305.2mm |
| Bolt Circle Diameter |
|
| Baffle Cutout Diameter | 10.97" / 278.6mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.25" / 6.4mm |
|
Overall
Depth |
4.9" / 124mm |
|
MATERIALS |
|
|
Basket |
Pressed Steel |
| Voice Coil | Polyamide-Imide Coated Copper |
| Dust cap | Solid Composition paper |
| Cone | Paper |
| Surround | Paper Cone Edge |
| Magnet | Ferrite |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 94 Hz |
|
Impedance
(Re) |
7.44 ohms |
| Coil Inductance (Le) | 0.7mH |
| Electromagnetic Q (Qes) | 1.18 |
| Mechanical Q (Qms) | 6.15 |
| Total Q (Qts) | .99 |
| Compliance Equivalent Vol. (Vas) | 32.5 Liters / 1.15cu.ft. |
| Voice Coil Overhang (Xmax) | 0.5mm |
| Surface Area of Cone (Sd) | .05067m2 |
| BL Product (BL) | 10.9 T-M |
| Displacement Volume (Vd) | 24 cc |
| Diaphragm Mass Inc. Airload (Mms) | 32 grams |
| Mechanical Compliance (Cms) | .09mm/N |
| Mechanical Resistance (RMS) | 3.07N*sec/M |
| Efficiency Bandwidth Product (EBP) | 79 |
| Impedance at Resonance (Zmax) | 46 ohms |
|
|
|
