LIL' BUDDY - 10" GUITAR SPEAKER
|
|
|
LIL' BUDDY - 10" GUITAR SPEAKER |
|
THE EMINENCE LIL BUDDY HAS A HEMP CONE THAT SOUNDS BIG & CRUNCHES AT HIGH VOLUMES! |
|
|
|
Lil' Buddy - 8 ohms
Item Price: $119.99 Free UPS Ground Shipping in the U.S. |
| SPEAKER MODEL | LIL' BUDDY |
|
SPECIFICATIONS |
|
|
Nominal Basket Diameter |
10" / 256mm |
|
Impedance |
8 ohms |
| RMS Power Rating | 50 Watts |
| Usable Frequency Response | 80Hz - 5.0kHz |
|
Voice Coil Diameter |
1.75" / 44.5mm |
|
Sensitivity (1W/1m) |
99.1dB |
|
Magnet Weight |
30 oz. |
| Net Weight | 6.3lbs. / 2.9 kg. |
| Shipping Weight | 7.4lbs. / 3.4 kg. |
|
MOUNTING INFORMATION |
|
|
|
10.11" / 256.8mm |
| Bolt Circle Diameter |
|
| Baffle Cutout Diameter | 9.13" / 231.8mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.23" / 5.7mm |
| Overall Depth | 4.3" / 109mm |
|
MATERIALS |
|
| Cone | Hemp |
| Voice Coil | Copper |
| Magnet | Ferrite |
| Basket | Stamped Steel |
| Surround | Paper |
| Dust Cap | Zurette |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 149Hz |
| Impedance (Re) | 6.31 ohms |
| Coil Inductance (Le) | 0.46mH |
| Mechanical Q (Qms) | 9.06 |
| Electrical Factor(Qes) | .93 |
| Total Q (Qts) | .84 |
| Comp. Equivelant Vol. (Vas) | .35 ft3 / 10 Liters |
| Voice Coil Overhang (Xmax) | 0.8mm |
| Surface Area of Cone (Sd) | .03661m2 |
| BL Product (BL) | 11.7 T-M |
| Peak Dia. Displacement Volume(Vd) | 29cc |

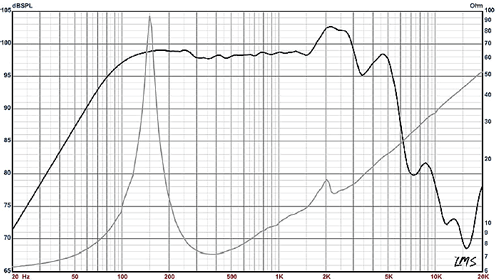

| LIL' BUDDY RESPONSE CURVE | |
|
|
|
