LIL' TEXAS - 12" GUITAR SPEAKER
|
|
|
LIL' TEXAS - 12" GUITAR SPEAKER |
|
THE EMINENCE LIL TEXAS HAS A LIGHTWEIGHT NEODYMIUM MAGNET WITH A CRISP MID-HIGH SOUND W/ A HINT OF BITING HIGHS! |
|
|
|
Lil' Texas-8 - 8 ohms
Item Price: $134.99 Free UPS Ground Shipping in the U.S. |
| SPEAKER MODEL | LIL' TEXAS |
|
SPECIFICATIONS |
|
|
Nominal Basket Diameter |
12" / 304.8mm |
|
Impedance |
8 ohms |
|
RMS Power Rating |
125 Watts |
| Usable Frequency Response | 70Hz - 5.5kHz |
|
Voice Coil Diameter |
2" / 50.8mm |
|
Sensitivity (1W/1m) |
101dB |
|
Magnet Weight |
4 oz. |
| Net Weight | 4.1lbs. / 1.9 kg. |
| Shipping Weight | 5.8lbs. / 2.6 kg. |
|
MOUNTING INFORMATION |
|
|
|
12.03" / 305.5mm |
| Bolt Circle Diameter |
11.59 |
| Baffle Cutout Diameter | 10.95" / 278.1mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.25" / 6.4mm |
| Overall Depth | 5.07" / 129mm |
|
MATERIALS |
|
| Cone | Paper |
| Voice Coil | Copper |
| Magnet | Neodymium |
| Basket | Pressed Steel |
| Surround | Paper |
| Dust Cap | Zurette |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 90Hz |
| Impedance (Re) | 7.2 ohms |
| Coil Inductance (Le) | 0.42mH |
| Mechanical Q (Qms) | 11.29 |
| Electrical Factor(Qes) | .69 |
| Total Q (Qts) | .65 |
| Comp. Equivelant Vol. (Vas) | 1.53 ft3 / 43 Liters |
| Voice Coil Overhang (Xmax) | 1.3mm |
| Surface Area of Cone (Sd) | .05195m2 |
| BL Product (BL) | 12.8 T-M |
| Peak Dia. Displacement Volume(Vd) | 66cc |

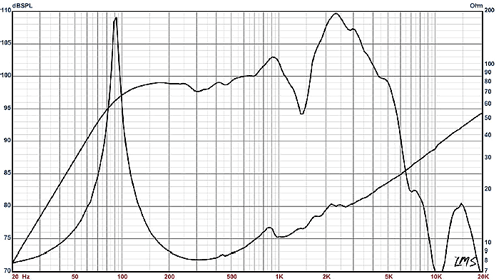

| LIL' TEXAS RESPONSE CURVE | |
|
|
|
