Genuine Eminence
-
10"
GUITAR SPEAKER
|
|
|
|
|
THE EMINENCE RAMROD 10" GUITAR SPEAKER DELIVERS SWEET HIGHS & PRONOUNDED MIDS SOUND WITH 75 WATTS RMS POWER HANDLIMG! |
|
|
Free UPS Ground Shipping in the U.S. |
Ramrod-8 - 8 ohms
Item Price: $114.99 |
| SPEAKER MODEL | RAMROD |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
10" / 256mm |
| Impedance | 8 ohms |
| RMS Power Rating | 75 Watts |
|
Peak
Power Rating |
150 Watts |

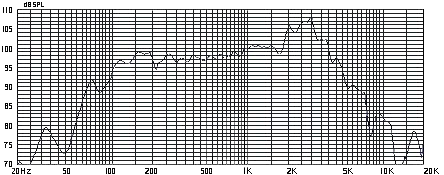

| Usable Frequency Response | 70Hz - 5.0kHz |
|
Voice
Coil Diameter |
1.5" / 38.1mm |
|
Sensitivity
(1W/1m) |
100dB SPL |
|
Magnet
Weight |
30 oz |
| Shipping Weight | 9.0lbs. / 4.1 kg. |
|
MOUNTING INFORMATION |
|
|
|
10.11" / 256.8mm |
| Bolt Circle Diameter |
|
| Baffle Cutout Diameter | 9.125" / 243.8mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.225" / 5.7mm |
| Overall Depth | 4.3" / 109.2mm |
|
MATERIALS |
|
| Basket | Stamped Steel |
| Voice Coil | Copper |
| Coil Former Material | Paper |
| Dust Cap | Zurette |
| Cone | Paper |
| Surround | Paper |
| Magnet | Ferrite |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 101Hz |
| Impedance (Re) | 7.3 ohms |
| Coil Inductance (Le) | 0.39mH |
| Electromagnetic Q (Qes) | 0.68 |
| Mechanical Q (Qms) | 10.8 |
| Total Q (Qts) | .64 |
| Compliance Equiv. Vol. (Vas) | 24.6Liters / 0.9 cu. ft. |
| BL Product (BL) | 11.5 T-M |
| Voice Coil Overhang (Xmax) | 0.47mm |
| Surface Area of Cone (Sd) | .03661m2 |
|
|
|
