Tannoy speakers, Dual Concentric™ loudspeakers

TANNOY AMS SERIES

AMS5iCT

• 5" ICT Driver
• 50 Watts RMS
• 100 Watts Program
• Comes in 16 ohms & 100/70-Volt 30W Transformer
• 90Hz - 22kHz
• Fully Weatherized
• Suited for indoor or outdoor use

Call 1-877-732-5374 for pricing

AMS5DC

• 5" Dual Concentric™
• 60 Watts RMS
• 120 Watts Program
• Comes in 16 ohms & 100/70-Volt 30W Transformer
• 90Hz - 30kHz
• Fully Weatherized
• Suited for indoor or outdoor use
• Extended Clean Highs

Call 1-877-732-5374 for pricing

AMS6iCT

• 6.5" ICT Driver
• 60 Watts RMS
• 120 Watts Program
• Comes in 16 ohms & 100/70-Volt 60W Transformer
• 75Hz - 22kHz
• Fully Weatherized
• Suited for indoor or outdoor use

Call 1-877-732-5374 for pricing

AMS6DC

• 6.5" Dual Concentric™
• 80 Watts RMS
• 160 Watts Program
• Comes in 16 ohms & 100/70-Volt 60W Transformer
• 75Hz - 30kHz
• Fully Weatherized
• Suited for indoor or outdoor use
• Extended Clean Highs

Call 1-877-732-5374 for pricing

AMS8DC

• 8" Dual Concentric™
• 90 Watts RMS
• 180 Watts Program
• Comes in 16 ohms & 100/70-Volt 60W Transformer
• 65Hz - 30kHz
• Fully Weatherized
• Suited for indoor or outdoor use
• Extended Clean Highs & Strong Bass

Call 1-877-732-5374 for pricing

Tannoy Studio Monitor Speakers

REVEAL SERIES

Reveal 6

• 2-Way Passive Nearfield Monitor
• 6.5" LF & 1" Tweeter
• 100 Watts Program
• 63Hz - 51kHz
• Magnetically Shielded
• Compact Monitor!

Call 1-877-732-5374 for pricing

Tannoy In-Wall Speakers

iw6 DS

• 6.5" Mid/Bass Driver & 1" Neo Tweeter
• In-Wall Speaker
• 44Hz - 51kHz
• 75 Watts RMS
• 150 Watts Program
• 225 Watts Peak
• 8 ohms
• Crossover-2.7kHz

Call 1-877-732-5374 for pricing

iw6 TDC

• (1) 6.5" Dual Concentric Driver & (1) Tweeter
• In-Wall Loudspeaker
• 36Hz - 51kHz
• 110 Watts RMS
• 220 Watts Program
• 325 Watts Peak
• 8 ohms
• Crossover-1.8kHz & 16kHz

Call 1-877-732-5374 for pricing

iw62 TDC

• (1) 6.5" Dual Concentric Driver, (1) 6.5" Woofer & (1) Tweeter
• In-Wall Loudspeaker
• 34Hz - 51kHz
• 125 Watts RMS
• 250 Watts Program
• 420 Watts Peak
• 8 ohms
• Crossover - 750Hz, 1.8kHz & 16kHz
• Dual Woofers Provide Extra Bass

Call 1-877-732-5374 for pricing

Tannoy VX Series - Passive Speakers (Non Powered)

VX5.2

• (1) 5"” Dual Concentric™ Speaker
• (1) 5" Bass Speaker
• Compact High Quality Speaker
• 130 Watts RMS
• 260 Watts Program
• 520 Watts Peak
• 90dB SPL
• 8 ohms
• 87Hz - 35kHz

Call 1-877-732-5374 for pricing

VX6

• (1) 6.5" Dual Concentric™
• Compact High Quality Speaker
• 100 Watts RMS
• 200 Watts Program
• 400 Watts Peak
• 91dB SPL
• 8 ohms
• 80Hz - 45kHz

Call 1-877-732-5374 for pricing

VX8

• 8” Dual Concentric™
• Compact High Quality Speaker
• 130 Watts RMS
• 260 Watts Program
• 520 Watts Peak
• 92dB SPL
• 8 ohms
• 85Hz - 35kHz

Call 1-877-732-5374 for pricing

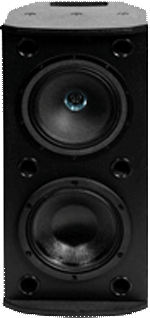

VX8.2

• (1) 8” Dual Concentric™
• (1) 8" Bass Speaker
• Compact High Quality Speaker
• 200 Watts RMS
• 400 Watts Program
• 800 Watts Peak
• 93dB SPL
• 8 ohms
• 60Hz - 45kHz

Call 1-877-732-5374 for pricing

VX12

• 12" Dual Concentric
• Excellent Clarity & Definition
• 200 Watts RMS
• 400 Watts Program
• 800 Watts Peak
• 97dB SPL
• 8 ohms
• 70 Hz - 25 kHz
• Passive or Bi-Amp Mode

Call 1-877-732-5374 for pricing

VX12Q

• 12" Dual Concentric
• Excellent Clarity, Definition & High Power Handling
• 350 Watts RMS
• 700 Watts Program
• 1400 Watts Peak
• 97dB SPL
• 8 ohms
• 80 Hz - 25 kHz
• Passive or Bi-Amp Mode

Call 1-877-732-5374 for pricing

VX12HP

• 12" Dual Concentric PowerDual Loudspeaker
• Maximum SPL of 129dB!
• Very Clear & Natural Sounding
• 350 Watts RMS
• 700 watts Program
• 1,400 Watts Peak
• 8 ohms
• 80 Hz - 25 kHz
• Passive or Bi-Amp Mode

Call 1-877-732-5374 for pricing

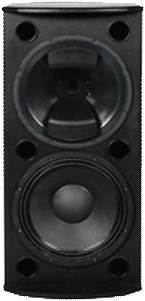

VX12.2Q

• (1) 12" Dual Concentric PowerDual Loudspeaker
• (1) 12" Bass Speaker
• Maximum SPL of 132dB!
• Very Clear & Natural Sounding
• 350 Watts RMS
• 700 watts Program
• 1,400 Watts Peak
• 8 ohms
• 70 Hz - 25 kHz
• Passive or Bi-Amp Mode

Call 1-877-732-5374 for pricing

VX15HP

• 15" Dual Concentric PowerDual Loudspeaker
• Maximum SPL of 131dB!
• Powerful & Smooth Sounding
• 400 Watts RMS
• 800 watts Program
• 1,600 Watts Peak
• 8 ohms
• 70Hz - 25kHz
• Passive or Bi-Amp Mode

Call 1-877-732-5374 for pricing

V15Q

• 15" Dual Concentric PowerDual Loudspeaker
• Maximum SPL of 131dB!
• Powerful & Smooth Sounding
• 400 Watts RMS
• 800 watts Program
• 1,600 Watts Peak
• 8 ohms
• 70Hz - 25kHz
• Passive Speaker

Call 1-877-732-5374 for pricing

VS215HL

• High Power 15" Bass Horn
• 3” voice coil
• 800 Watts RMS
• 8 ohms
• 60Hz - 300Hz
• M10 Flypoints

Call 1-877-732-5374 for pricing

VS218DR

• High Power 18" Reflex-Loaded Sub-Bass System
• 4” voice coil
• 1200 Watts RMS
• 102dB SPL
• 8 ohms
• 27Hz - 240Hz
• M10 Flypoints

Call 1-877-732-5374 for pricing

Tannoy Ceiling Speakers

CVS4

• 4" Ceiling Speaker
• 40 Watts RMS
• 80 Watts Program
• 6Ω / 100V/70V/30 Watt Transformer
• Wide Frequency From 77Hz - 22kHz
• Clean Transparent Sound!

Call 1-877-732-5374 for pricing

CMS403iCTe

• 4" ICT Ceiling Speaker
• 25° Pivotal Adjustment
• 50 Watts RMS
• 100 Watts Program
• 200 Watts peak
• 6Ω or 70V/30 Watts Multi Tap Operation
• 100Hz - 50kHz
• 90° Dispersion
• Included Accessories: C Ring, Tile Bridge Kit, Grille, Cutout Template & Paint mask

Call 1-877-732-5374 for pricing

CMS403DCe

• 4" Dual Concentric Ceiling Speaker
• 25° Pivotal Adjustment
• 60 Watts RMS
• 120 Watts Program
• 240 Watts Peak
• 8Ω or 70V/30 Watts Multi Tap Operation
• 80Hz - 54kHz
• 90° Dispersion
• Included Accessories: C Ring, Tile Bridge Kit, Grille, Cutout Template & Paint mask

Call 1-877-732-5374 for pricing

CMS501 BM

• 5" ICT Ceiling Speaker w/ Back Can
• 25° Pivotal Adjustment
• 50 Watts RMS
• 100 Watts Program
• 200 Watts peak
• 6Ω or 70V/30 Watts Multi Tap Operation
• 85Hz - 22kHz
• 90° Dispersion
• Available in Black or White
• Included Accessories: C Ring, Tile Bridge Kit, Grille, Cutout Template & Paint mask

Call 1-877-732-5374 for pricing

CMS503DCPL

• 5" ICT Ceiling Speaker w/ No Back Can
• 50 Watts RMS
• 100 Watts Program
• 200 Watts peak
• 6Ω or 70V/30 Watts Multi Tap Operation
• 85Hz - 22kHz
• 90° Dispersion
• Available in White Only
• Included Accessories: C Ring, Tile Bridge Kit, Grille, Cutout Template & Paint mask

Call 1-877-732-5374 for pricing

CMS503DCBM

• 5" Dual Concentric Ceiling Speaker w/ Back Can
• 60 Watts RMS
• 120 Watts Program
• 240 Watts Peak
• 8Ω or 70V/30 Watts Multi Tap Operation
• 85Hz - 50kHz
• 90° Dispersion
• Available in Black or White
• Included Accessories: C Ring, Tile Bridge Kit, Grille, Cutout Template & Paint mask

Call 1-877-732-5374 for pricing

CMS503DCLP

• 5" Dual Concentric Ceiling Speaker w/ No Back Can
• 60 Watts RMS
• 120 Watts Program
• 240 Watts Peak
• 8Ω or 70V/30 Watts Multi Tap Operation
• 81Hz - 50kHz
• 90° Dispersion
• Available in White Only
• Included Accessories: C Ring, Tile Bridge Kit, Grille, Cutout Template & Paint mask

Call 1-877-732-5374 for pricing

CMS60iCTBM

• 6.5" ICT Ceiling Speaker w/ Back Can
• 60 Watts RMS
• 120 Watts Program
• 240 Watts peak
• 6Ω or 70V/30 Watts Multi Tap Operation
• 78Hz - 22kHz
• 90° Dispersion
• Available in Black or White
• Included Accessories: C Ring, Tile Bridge Kit, Grille, Cutout Template & Paint mask

Call 1-877-732-5374 for pricing

CMS603iCTPL

• 6.5" ICT Ceiling Speaker w/ No Back Can
• 60 Watts RMS
• 120 Watts Program
• 240 Watts peak
• Available in 6Ω
• 73Hz - 22kHz
• 90° Dispersion
• Available in White Only
• Included Accessories: C Ring, Tile Bridge Kit, Grille, Cutout Template & Paint mask

Call 1-877-732-5374 for pricing

CMS603DCBM

• 6.5" Dual Concentric Ceiling Speaker w/ Back Can
• 80 Watts RMS
• 160 Watts Program
• 320 Watts Peak
• 8Ω or 70V/30 Watts Multi Tap Operation
• 75Hz - 30kHz
• 90° Dispersion
• Available in Black or White
• Included Accessories: C Ring, Tile Bridge Kit, Grille, Cutout Template & Paint mask

Call 1-877-732-5374 for pricing

CMS603DCPL

• 6.5" Dual Concentric Ceiling Speaker w/ No Back Can
• 60 Watts RMS
• 120 Watts Program
• 240 Watts Peak
• Available in 8Ω or 70V/60 Transformer
• 71Hz - 30kHz
• 90° Dispersion
• Available in White Only
• Included Accessories: C Ring, Tile Bridge Kit, Grille, Cutout Template & Paint mask

Call 1-877-732-5374 for pricing

CMS803DCBM

• 8" Dual Concentric Ceiling Speaker w/ Back Can
• 90 Watts RMS
• 180 Watts Program
• 360 Watts Peak
• 8Ω or 70V/30 Watts Multi Tap Operation
• 47Hz - 30kHz
• 90° Dispersion
• Available White Only
• Included Accessories: C Ring, Tile Bridge Kit, Grille, Cutout Template & Paint mask

Call 1-877-732-5374 for pricing

CMS803DCPL

• 8" Dual Concentric Ceiling Speaker w/ No Back Can
• 90 Watts RMS
• 180 Watts Program
• 360 Watts Peak
• 8Ω or 70V/30 Watts Multi Tap Operation
• 48Hz - 30kHz
• 90° Dispersion
• Available White Only
• Included Accessories: C Ring, Tile Bridge Kit, Grille, Cutout Template & Paint mask

Call 1-877-732-5374 for pricing

CMS801 SubBM

• 8" Ceiling Subwoofer Ceiling Speaker w/ Back Can
• 100 Watts RMS
• 200 Watts Program
• 400 Watts Peak
• 8Ω or 70V/30 Watts Multi Tap Operation
• 58Hz - 160Hz
• Available White Only
• Included Accessories: C Ring, Tile Bridge Kit, Grille, Cutout Template & Paint mask

Call 1-877-732-5374 for pricing

CMS801 SubPL

• 8" Ceiling Subwoofer Ceiling Speaker w/ No Back Can
• 100 Watts RMS
• 200 Watts Program
• 400 Watts Peak
• Avilable in 8Ω or 70V/60 Watts Transformer
• 58Hz - 160Hz
• Available White Only
• Included Accessories: C Ring, Tile Bridge Kit, Grille, Cutout Template & Paint mask

Call 1-877-732-5374 for pricing

CMS1201DC

CMS1201DC

• 12" Dual Concentric Ceiling Speaker
• Mounted On A Vented Steel Plate
• Optional Tuned Back Can
• 200 Watts RMS
• 400 Watts Program
• 800 Watts Peak
• Available in 8Ω, 70V/60 Watt Transformer or 70V/150 Watt Transformer
• 47Hz - 30kHz
• 90° Dispersion
• Available White Only
• Included Accessories: C Ring, Tile Bridge Kit, Grille, Cutout Template & Paint mask

Call 1-877-732-5374 for pricing
