Genuine Eminence

Eminence Wizard

 12" GUITAR SPEAKER

THE EMINENCE WIZARD HAS TIGHT LOW END W/JUST ENOUGH BITE IN THE MIDS & GOOD SUSTAIN!

Eminence WizardEminence Wizard

Free UPS Ground Shipping in the U.S.

The Wizard-8  -  8 ohms



Item Price: $139.99

SPEAKER MODEL THE WIZARD

SPECIFICATIONS

Nominal Basket Diameter 12" / 305mm
Impedance 8 ohms
RMS Power Rating 75 Watts
Peak Power Rating 150 Watts
Usable Frequency Response 70Hz-5kHz
Voice Coil Diameter 1.75" / 44.5mm
Sensitivity (1W/1m) 103dB
Magnet Weight 56 oz.
Shipping Weight 13lbs. / 5.9 kg.

MOUNTING INFORMATION

Overall Diameter 12.02" / 305.2mm
Bolt Circle Diameter 11.63" / 295.3mm
Baffle Cutout Diameter 10.97" / 278.6mm
No. Of Mounting Holes 8
Mounting Hole Diameter 0.25" / 6.4mm
Overall Depth 5.2" / 132mm

MATERIALS

Basket Stamped Steel
Voice Coil Copper
Coil Former Material Kapton
Dust Cap Zurette
Cone Paper
Surround Paper
Magnet Ferrite

THIELE-SMALL PARAMETERS

Resonant Frequency (fs) 89 Hz
Impedance (Re) 6.13 ohms
Coil Inductance (Le) 0.38mH
Resonant Frequency (fs) 0.49
Mechanical Q (Qms) 11.48
Total Q (Qts) .47
Compliance Equiv. Vol. (Vas) 41.5Liters / 1.5 cu. ft.
BL Product (BL) 14.4 T-M
Voice Coil Overhang (Xmax) 0.8mm
Surface Area of Cone (Sd) .05195m2

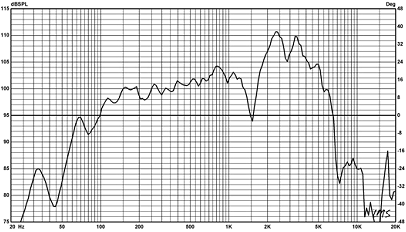

Eminence The Wizard Frequency Graph
