Allwood Horn 610F Oak - Allwood Horn 610F Oak 1" constant directivity wood horn. Allwood Horn 610F Oak constant directivity horns made with red oak available here at US Speaker.

THE ALLWORD HORN 610F OAK IS MADE FROM SELECT RED OAK WOOD FOR A VERY NATURAL SOUND!

No Longer Available

HORN MODEL - 610F-OAK
Specifications
Type	Tractrix/Hyperbolic
Throat Size	1" / 25.4mm
Frequency Response	800Hz - 20kHz
Recommended Crossover Freq.	1kHz
Dispersion	60°H x 50° V
Radius (Top & Bottom)	Tractrix
Radius (Sides)	Hyperbolic (Parabolla)
Net Weight	1.2 lbs. / 2.4kg
Materials
Construction	Select Red Oak
Finish	Hand Rubbed Oil
Mounting Information
Overall Width	10.44" / 265.2mm
Overall Height	6.44" / 163.6mm
Overall Depth	8.75" / 222.3mm
Cutout Width	9.25" / 235mm
Cutout Height	5.375" / 136.5mm
Mounting Type	Bolt On
2 Mounting Holes Equally Spaced On Diameter	3" / 76.2 mm

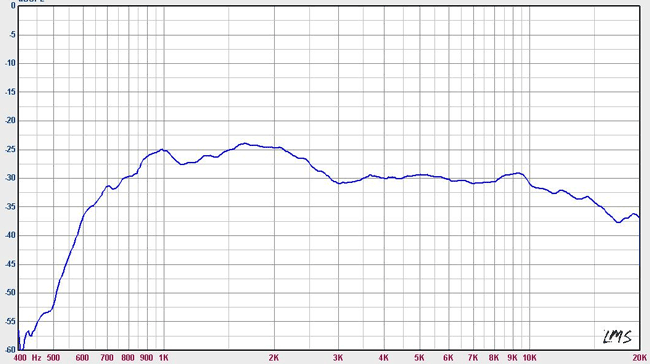

Frequency Response
Measurement w/ Radian 450PB
