Genuine Eminence
ALPHA 3-8
|
|
|
ALPHA 3-8 |
|
THE EMINENCE ALPHA 3 3" SPEAKER IS GREAT FOR SYSTEMS TAHT NEED A SINGLE SPEAKER TO PLAY BOTH THE MIDRANGE AND HIGH FREQUENCIES! |
|
|
Free UPS Ground Shipping in the U.S. |
Alpha 3-8 - 8 ohms
Item Price: $24.99 |
|
Alpha 3-16 - 16 ohms
Item Price: $24.99 |
|
|
Alpha 3-32 - 32 ohms
Item Price: $24.99 |
|
|
WOOFER
MODEL |
ALPHA 3-8 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
3"
/ 76mm |
|
Impedance |
8, 16 & 32
ohms
|
|
RMS
Power Rating |
30
Watts |
| Program Power Handling | 60 Watts |
|
Frequency
Response |
150Hz - 20kHz |
|
Sensitivity
(1W/1m) |
88.6dB |
|
Voice
Coil Diameter |
.787"
/ 20mm |
| Rec. Enclosure Volume(Sealed) | .03 - .05cu. ft./.85 - 1.42 Liters |
| Rec. Enclosure Volume(Vented) | .05 - .07cu. ft./1.4 - 1.98 Liters |
|
MATERIALS |
|
| Basket | Pressed Steel |
| Cone | Paper/Poly |
| Surround | Poly |
| Dustcap | Poly |
| Voice Coil | Copper |
| Voice Coil Former | Polyimide |
| Core | Vented |
| Magnet | Ferrite |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 3.98" / 101.1mm |
| Flat to Flat Diameter | 3.24" / 82.3mm |
| Bolt Circle Diameter | 3.63" / 92.1mm |
| Baffle Cutout Diameter | 3.04" / 77.2mm |
| No. Of Mounting Holes | 4 |
| Mounting Hole Diameter | 0.16" / 4.1mm |
| Overall Depth | 1.76" / 44.6mm |
| Magnet Weight | 8 oz. |
| Net Weight | .9 lbs. / .41 kg. |
| Shipping Weight | 1.1 lbs. /.5kg. |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 118 Hz |
|
Impedance
(Re) |
5.12 ohms |
| Coil Inductance (Le) | 0.11mH |
| Electromagnetic Q (Qes) |
.53 |
| Mechanical Q (Qms) | 7.94 |
|
Total Q (Qts) |
.50 |
| Compliance Equivalent Vol. (Vas) | .95 Liters/.03cu. ft. |
| Voice Coil Overhang (Xmax) | 2.4mm |
| Diaphragm Mass (Mms) | 2 Grams |
| BL Factor (BL) | 3.93 T-M |
| Surface Area of Cone (Sd) | .0286m2 |
|

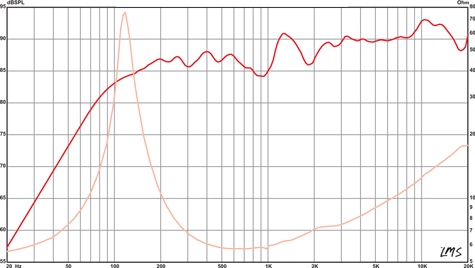

FREQUENCY RESPONSE GRAPH |
|
|
|
|
