Genuine Eminence
BASS LITE CH2010 - 10" WOOFER
|
|
|
BASS LITE CH2010 - 10" WOOFER |
|
NICE TONE FROM THIS 150 WATT RMS HEMP CONE 10" BASS SPEAKER! |
|
|
|
SOLDOUT. NO LONGER AVAILABLE. |
|
WOOFER
MODEL |
BassLite CH2010 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
10"
/ 254mm |
|
Impedance |
8
ohms
|
|
RMS
Power Rating |
150
Watts |
|
Frequency
Response |
54Hz
- 3kHz |
| Sensitivity | 96.7dB SPL |
|
Voice Coil Diameter |
2" / 50.8mm |
| Net Weight | 3.6lbs./ 1.6kg. |
| Shipping Weight | 4.7lbs./ 2.1kg. |
| Rec. Enclosure Volume (Vented) | .6-1.8 cu.ft. / 17-51 Liters |
|
MOUNTING INFORMATION |
|
|
Overall Diameter |
10.25" / 260.4mm |
| Bolt Circle Diameter | 9.73" / 247.1mm |
| Baffle Cutout Diameter | 9.13" / 231.9mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.28" / 7mm |
| Overall Depth | 4.75" / 121mm |
| Magnet Weight | 4 oz. |
|
MATERIALS |
|
| Cone | Hemp |
| Voice Coil | Copper |
| Magnet | Neodymium |
| Basket | Die-cast Aluminum |
| Surround | Cloth |
| Dust Cap | Zurette |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 58Hz |
| Impedance (Re) | 5.37 ohms |
| Coil Inductance (Le) | 0.52mH |
| Electromagnetic Q (Qes) | .47 |
| Mechanical Q (Qms) | 6.5 |
| Total Q (Qts) | .44 |
| Compliance Equiv. Vol. (Vas) | 43 Liters/1.5cu. ft. |
| Voice Coil Overhang (Xmax) | 3.5mm |
| Surface Area of Cone (Sd) | .03449 m2 |
| BL Product (BL) | 11.1 T-M |
| Peak Dia. Displacement Volume(Vd) | 120cc |
|

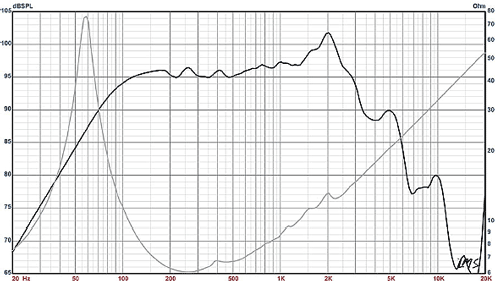

BASSLITE CH2010 RESPONSE CURVE |
|
|
|
|
