BEYMA 10BR60 - 10" PRO WOOFER
|
|
|
BEYMA 10BR60 - 10" PRO WOOFER |
|
HIGH 6.0MM XMAX FOR A STRONG CLEAN BASS SOUND W/ GOOD MIDS! |
|
|
|
BEYMA 10BR60 |
|
Replaced By The 10BR60v2 |
|
|
WOOFER
MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
10" |
|
Impedance |
8
ohms |
|
RMS
Power Rating |
100
Watts |
| Program Power |
200
Watts |
|
Frequency
Response |
30Hz
- 5.0kHz |
|
Sensitivity
(1W/1m) |
91.5dB |
|
Voice
Coil Diameter |
2"
/ 51.7mm |
| BL Factor | 12.4 N/A |
| Voice Coil Length | 16 mm |
| Air Gap Height | 7 mm |
| X Damage (peak to peak) | 30 mm |
| Magnetic Assembly Weight | 6.1 lb. / 2.75 kg. |
|
Mounting Information |
|
|
Overall Diameter |
10.62" / 270mm |
|
Bolt
Circle Diameter |
10.03" / 255mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 9.45" / 240mm |
| - Rear Mount | 9.05" / 230mm |
|
No.
Of Mounting Holes |
6 |
| Volume Displaced By Driver | 0.087 ft3 / 2.5 Liters |
| Overall Depth | 4.37" / 111mm |
|
Net
Weight |
6.38 lb. / 2.9 kg. |
| Shipping Weight | 7.48 lb. / 3.4 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Paper |
| Surround | Butyl Rubber |
| Voice Coil | Copper |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 45 Hz |
|
Impedance
(Re) |
6.5 ohms |
| Coil Inductance (Le) | 1.1 mH |
| Mechanical Q (Qms) | 1.9 |
| Electrical Factor(Qes) | .62 |
| Total Q (Qts) | .47 |
| Comp. Equivalent Vol. (Vas) | 1.65 ft3 / 47 Liters |
| Voice Coil Overhang (Xmax) | 6.0 mm |
| Surface Area of Cone (Sd)m2 | 0.038m2 |
| Reference Efficiency | .75% |
| Displacement Volume (Vd) | 240 cm3 |
|

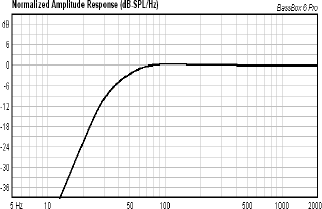

Low Freq. Response: Bass Reflex Cabinet-Vb=40L, Fb=38Hz |
|
 |
|
| Frequency Response & Distortion Curves | |
 |
|
| Mounting Dimensions | |
 |
|
