BEYMA 10BR60v2 - 10" PRO WOOFER
|
|
|
BEYMA 10BR60v2 - 10" PRO WOOFER |
|
HIGH 6.5MM XMAX FOR A TIGHT CLEAN BASS SOUND W/ GOOD MIDS! |
|
|
|
BEYMA 10BR60v2 |
|
Item Price: $109.50 |
|
|
WOOFER
MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
10" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
100
Watts |
| Program Power |
200
Watts |
|
Frequency
Response |
30Hz
- 5.0kHz |
|
Sensitivity
(1W/1m) |
92dB |
|
Voice
Coil Diameter |
2"
/ 51.7mm |
| BL Factor | 10.9 N/A |
| Voice Coil Length | 16 mm |
| Air Gap Height | 7 mm |
| X Damage (peak to peak) | 31 mm |
| Recommend Cabinet Size | 30-100 Liters / 1.06-3.53 cu. ft. |
|
Mounting Information |
|
|
Overall Diameter |
10.26" / 260.5mm |
|
Bolt
Circle Diameter |
9.59" / 243.5mm |
| Baffle CutoutDiameter- | |
| - Front Mount | 8.98" / 228mm |
| - Rear Mount | 9.13" / 232mm |
|
No.
Of Mounting Holes |
8 |
| Volume Displaced By Driver | 0.08 ft3 / 2.5 Liters |
| Overall Depth | 4.72" / 120mm |
|
Net
Weight |
6.39 lb. / 2.9 kg. |
| Shipping Weight | 7.2 lb. / 3.3 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Paper |
| Surround | Butyl Rubber |
| Voice Coil | Copper |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 29 Hz |
|
Impedance
(Re) |
6.5 ohms |
| Coil Inductance (Le) | 1.5 mH |
| Mechanical Q (Qms) | 3.3 |
| Electrical Factor(Qes) | .44 |
| Total Q (Qts) | .39 |
| Comp. Equivalent Vol. (Vas) | 5.01 ft3 / 142 Liters |
| Voice Coil Overhang (Xmax) | 6.5 mm |
| Moving Mass (Mms) | 44 Grams |
| Surface Area of Cone (Sd)m2 | 0.038m2 |
| Reference Efficiency | .75% |
| Displacement Volume (Vd) | 247 cm3 |
|

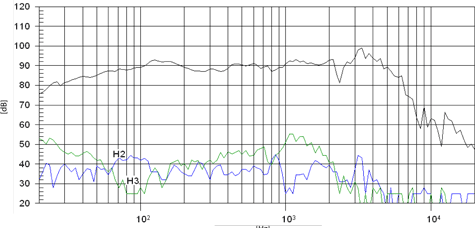

Frequency Response & Distortion Curves |
|
 |
|

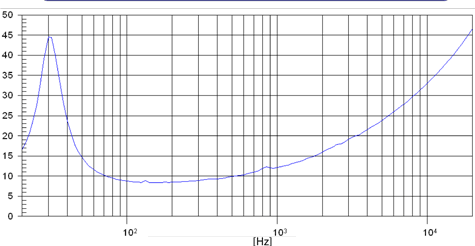

| Impedance | |
 |
|

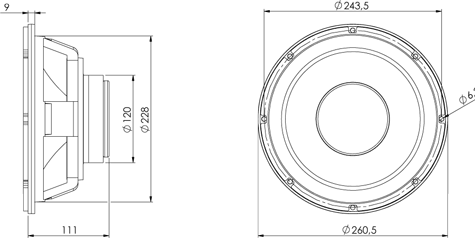

| Mounting Dimensions | |
 |
|
