BEYMA 10CMV2 - 10" MID-BASS SPEAKER
|
|
|
BEYMA 10CMV2 - 10" MID-BASS SPEAKER |
|
THE BEYMA 10CMV2 IS A NICE 10 INCH SPEAKER FOR BASS GUITAR AND PA SPEAKER SYSTEMS! |
|
|
|
BEYMA 10CMV2 |
|
Item Price: $119.95 |
|
|
WOOFER
MODEL - |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
10" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
250 Watts |
| Program Power |
500
Watts |
|
Frequency
Response |
60Hz
- 5.0kHz |
|
Sensitivity
(1W/1m) |
95dB |
|
Voice
Coil Diameter |
1.5" /
38.1mm |
| Voice Coil Length | 16 mm |
| Air Gap Height | 7 mm |
| X Damage (peak to peak) | 30 mm |
| BL Factor | 13.4 N/A |
|
Mounting Information |
|
|
Overall Diameter |
10.2" / 258mm |
| Bolt Circle Diameter | 9.5" / 241mm |
| Baffle Cutout Diameter - | |
| - Front Mount | 9.1" / 230mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.10 ft3 / 3 Liters |
|
Overall
Depth |
4.5" / 115mm |
|
Net
Weight |
6.8 lb. / 3.1 kg. |
| Shipping Weight | 7.7 lb. / 3.5 kg. |
|
Materials |
|
| Basket | Steel |
| Cone | Paper |
| Surround | Treated Cloth |
| Voice Coil | Copper |
| Magnet | Ferrite |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 52 Hz |
| Impedance (Re) | 5.9 ohms |
| Coil Inductance (Le) | .8 mH |
| Mechanical Q (Qms) | 3.8 |
| Electrical Factor (Qes) | .47 |
| Total Q (Qts) | .42 |
| Comp. Equivalent Vol. (Vas) | 1.55 ft3 / 44 Liters |
| Voice Coil Overhang (Xmax) | 6.5 mm |
| Moving Mass (Mms) | 42 Grams |
| Surface Area of Cone (Sd)m2 | 0.038m2 |
| Reference Efficiency | 1.3% |
| Displacement Volume (Vd) | 247 cm3 |
|

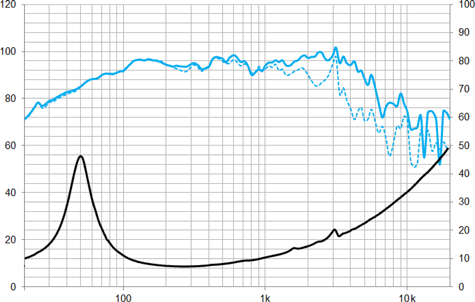

Frequency Response & Impedance Curve |
|
|
|
|
|

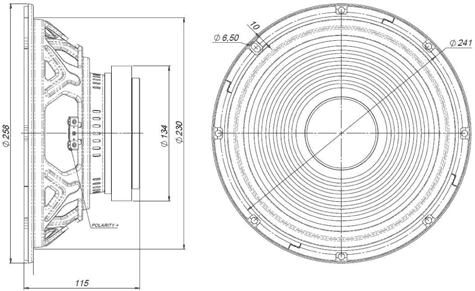

MOUNTING INFORMATION |
|
|
|
|
