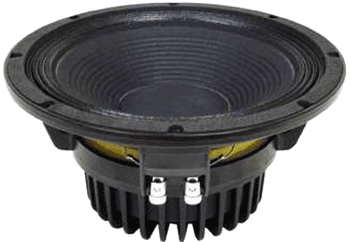

BEYMA 10LW30/N - 10" LIGHTWEIGHT NEODYMIUM SPEAKER
|
|
|
BEYMA 10LW30/N - 10" LIGHTWEIGHT NEODYMIUM SPEAKER |
|
THE BEYMA 10LW30N IS A POWERFUL LIGHTWEIGHT NEODYMIUM 10" SPEAKER THAT HANDLES 450 WATTS AES! |
|
|
|
BEYMA 10LW30/N |
|
4 Ohms
Item Price: $294.95 |
|
|
8 Ohms
Item Price: $294.95 |
|
|
SPEAKER
MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
10" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
450
Watts |
| Program Power |
900
Watts |
|
Frequency
Response |
55Hz
- 4kHz |
|
Sensitivity
(1W/1m) |
95dB |
|
Voice
Coil Diameter |
3"
/ 77mm |
| Recom. Enclosure Volume | .7-2.5 ft3 / 20-70 Liters |
| Voice Coil Length | 17.5 mm |
| Air Gap Height | 8 mm |
| X Damage (peak to peak) | 30 mm |
|
Mounting Information |
|
|
Overall Diameter |
10.25" / 260.5mm |
|
Bolt
Circle Diameter |
9.58"
/ 243.5mm |
| Baffle Cutout Diameter | 9.0" / 228mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.07 ft3 / 2 Liters |
|
Overall
Depth |
5" / 127.5mm |
|
Net
Weight |
8.25 lb. / 3.75 kg. |
| Shipping Weight | 9.35 lb. / 4.25 kg. |
|
Materials |
|
| Basket | Cast Aluminum |
| Cone | High Stiff Paper |
| Surround | Treated Cloth |
| Spider | Cotton |
| Voice Coil | Copper |
| Metal Parts | Anti-Corrosion Coated |
| Magnet | Extra Vented Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 55 Hz |
|
Impedance
(Re) |
6.2 ohms |
| Coil Inductance (Le) | 1.0 mH |
| Mechanical Q (Qms) | 8.5 |
| Electrical Factor(Qes) | .3 |
| Total Q (Qts) | .29 |
| Comp. Equivalent Vol. (Vas) | .99 ft3 / 28 Liters |
| Voice Coil Overhang (Xmax) | 7.0mm |
| Effective Surface Area (Sd) | .0350 m2 |
| Diaphragm Mass (Mms) | 52 Grams |
| BL Factor (T-M) | 19.3 |
| Reference Efficiency | 1.5% |
| Displacement Volume | 245 cm3 |
|

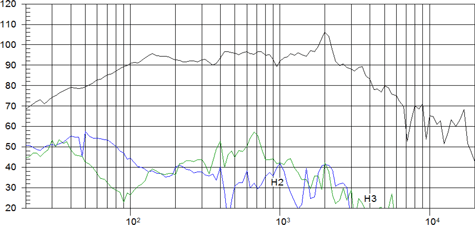

Frequency Response & Distortion Graph |
|
 |
|

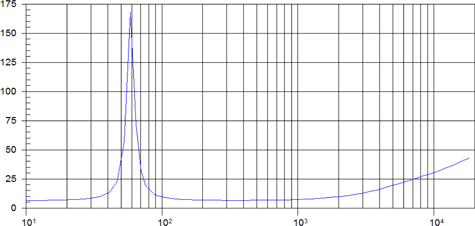

| Impedance Graph | |
 |
|

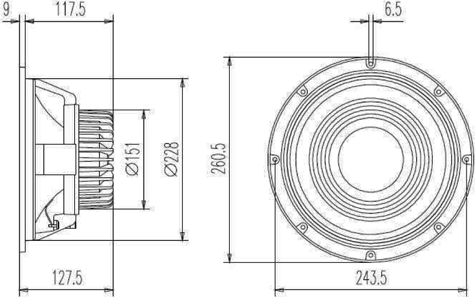

| Dimensional Drawing | |
 |
|
