BEYMA 10MCB700 - 10" MID-BASS / LOW FREQUENCY SPEAKER
|
|
|
BEYMA 10MCB700 - 10" MID-BASS / LOW FREQUENCY SPEAKER |
|
THE BEYMA 10MCB700 HAS CLEAR LOUD MID-BASS / LOW FREQUENCY THAT HANDLES 700 WATTS AES & 1,400 WATTS PROGRAM! |
|
|
|
BEYMA 10MCB700 |
|
Item Price: $265.95 |
|
|
WOOFER
MODEL - |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
10" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
700 Watts |
| Program Power |
1,400
Watts |
|
Frequency
Response |
80Hz
- 5.0kHz |
|
Sensitivity
(1W/1m) |
96dB |
|
Voice
Coil Diameter |
3" /
76.2mm |
| Voice Coil Length | 18 mm |
| Air Gap Height | 9.5 mm |
| X Damage (peak to peak) | 45 mm |
| BL Factor | 20.1 N/A |
|
Mounting Information |
|
|
Overall Diameter |
10.28" / 261mm |
| Bolt Circle Diameter | 9.58" / 243.5mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 9" / 228mm |
| No. Of Mounting Holes | 8 |
|
Overall
Depth |
5.1" / 129mm |
|
Net
Weight |
16.7 lb. / 7.6 kg. |
| Shipping Weight | 17.8 lb. / 8.1 kg. |
|
Materials |
|
| Basket | Cast Aluminum |
| Cone | Waterproof Paper |
| Surround | Treated Cloth |
| Voice Coil | Copper |
| Metal Parts | Anti-Corrosion Coated |
| Magnet | Ferrite |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 75 Hz |
| Impedance (Re) | 5.3 ohms |
| Coil Inductance (Le) | .9 mH |
| Mechanical Q (Qms) | 4.9 |
| Electrical Factor (Qes) | .35 |
| Total Q (Qts) | .33 |
| Comp. Equivalent Vol. (Vas) | 0.47 ft3 / 13.2 Liters |
| Voice Coil Overhang (Xmax) | 7.0 mm |
| Moving Mass (Mms) | 55 Grams |
| Surface Area of Cone (Sd)m2 | 0.0245m2 |
| Reference Efficiency | 1.7% |
| Displacement Volume (Vd) | 245 cm3 |
|

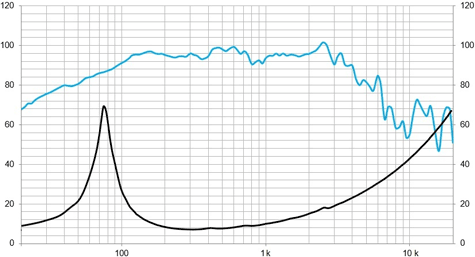

Frequency Response & Impedanc Curves |
|
| Note: On axis frequency response measured with loudspeaker standing on infinite baffle in anechoic chamber, 1W @ 1m | |
|
|
|
|

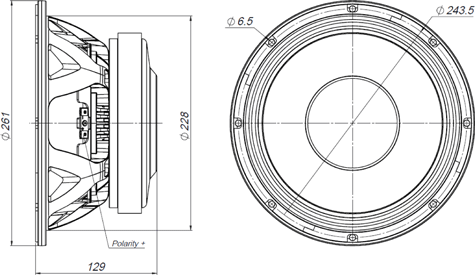

MOUNTING INFORMATION |
|
|
|
|
