BEYMA 10MCF400Nd - 10" CLOSED BACK CARBON FIBER NEODYMIUM MIDRANGE SPEAKER
|
|
|
BEYMA 10MCF400Nd - 10" CLOSED BACK CARBON FIBER NEODYMIUM MIDRANGE SPEAKER |
|
HIGH BL FACTOR OF 28.8T-M & CARBON FIBER CONE MAKES THIS A GREAT CHOICE FOR CLOSED BACK HORN LOADED SPEAKER SYSTEMS! |
|
|
|
BEYMA 10MCF400Nd |
|
Item Price: $599.95 |
|
|
LOW 2ND & 3RD HARMONIC DISTORTION. CHECK GRAPH BELOW. |
|
|
WOOFER
MODEL - |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
10" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
400 Watts |
| Program Power |
800
Watts |
|
Frequency
Response |
300Hz
- 5.0kHz |
|
Sensitivity
(1W/1m) |
102dB |
|
Voice
Coil Diameter |
4" /
101.6mm |
| Voice Coil Length | 11.5 mm |
| Air Gap Height | 10 mm |
| BL Factor | 28.8 N/A |
|
Mounting Information |
|
|
Overall Diameter |
10.63" / 270mm |
| Bolt Circle Diameter | 9.76" / 248mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 8.94" / 227mm |
| No. Of Mounting Holes | 8 |
|
Overall
Depth |
4.05" / 103mm |
|
Net
Weight |
13.67 lb. / 6.2 kg. |
| Shipping Weight | 14.55 lb. / 6.6 kg. |
|
Materials |
|
| Basket | Cast Aluminum |
| Cone | Carbon Fiber |
| Voice Coil | Edgewound Aluminum Wire |
| Magnet | Neodymium |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 260 Hz |
| Impedance (Re) | 5.8 ohms |
| Coil Inductance (Le) | .5 mH |
| Mechanical Q (Qms) | 22 |
| Electrical Factor (Qes) | .45 |
| Total Q (Qts) | .44 |
| Comp. Equivalent Vol. (Vas) | .07 ft3 / 2 Liters |
| Voice Coil Overhang (Xmax) | 3.5 mm |
| Moving Mass (Mms) | 40 Grams |
| Surface Area of Cone (Sd)m2 | 0.0380m2 |
| Reference Efficiency | 7.2% |
| Displacement Volume (Vd) | 133 cm3 |
|

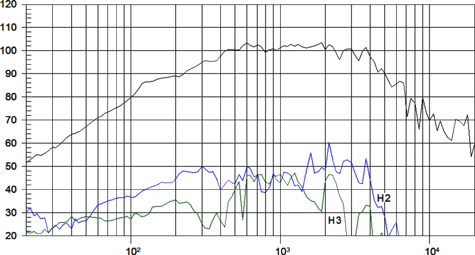

Frequency Response & Distortion Curves |
|
|
|
|
|

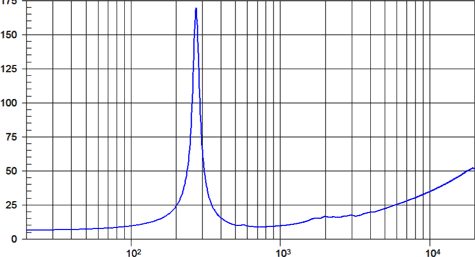

Impedance Curve |
|
|
|
|
