BEYMA 10MW/ND - 10" NEODYMIUM BASS SPEAKER
|
|
|
BEYMA 10MW/ND - 10" NEODYMIUM BASS SPEAKER |
|
LIGHTWEIGHT NEO 10" SPEAKER W/ A HIGH 7.5MM XMAX & 700 WATTS POWER HANDLING! |
|
|
|
BEYMA 10MW/ND |
|
4 Ohm Version
Item Price: $259.95 |
|
|
8 Ohm Version
Item Price: $259.95 |
|
|
SPEAKER
MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
10" |
|
Impedance |
4 or 8
ohms |
|
AES
Power Rating |
350
Watts |
| Program Power |
700
Watts |
|
Frequency
Response |
45Hz
- 5kHz |
|
Sensitivity
(1W/1m) |
95dB |
|
Voice
Coil Diameter |
2.5"
/ 62.4mm |
| Recom. Enclosure Volume | .7-1.77 ft3 / 20-50 Liters |
| Voice Coil Length | 19.5 mm |
| Air Gap Height | 10 mm |
| X Damage (peak to peak) | 30 mm |
| Magnetic Assembly Weight | 5.59 lb. / 2.54 kg. |
|
Mounting Information |
|
|
Overall Diameter |
10.28" / 261mm |
|
Bolt
Circle Diameter |
9.59"
/ 243.5mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 9.06" / 230mm |
| - Rear Mount | 9.17" / 233mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.07 ft3 / 2 Liters |
|
Overall
Depth |
4.65" / 118mm |
|
Net
Weight |
6.82 lb. / 3.1 kg. |
| Shipping Weight | 7.92 lb. / 3.6 kg. |
|
Materials |
|
| Basket | Cast Aluminum |
| Cone | High Stiff Paper |
| Surround | Treated Cloth |
| Spider | Cotton |
| Voice Coil | Copper |
| Metal Parts | Anti-Corrosion Coated |
| Magnet | High Energy Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 49 Hz |
|
Impedance
(Re) |
6 ohms |
| Coil Inductance (Le) | 1.7 mH |
| Mechanical Q (Qms) | 9.5 |
| Electrical Factor(Qes) | .33 |
| Total Q (Qts) | .32 |
| Comp. Equivalent Vol. (Vas) | 1.44 ft3 / 40.7 Liters |
| Voice Coil Overhang (Xmax) | 7.5mm |
| Effective Surface Area (Sd) | .0350 m2 |
| Reference Efficiency | 1.4% |
| BL Factor | 15.7N/A |
| Displacement Volume (Vd) | 263 cm3 |
|

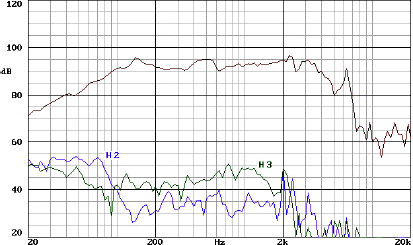

Low Freq. Response: Bass Reflex Cabinet- |
|
 |
|

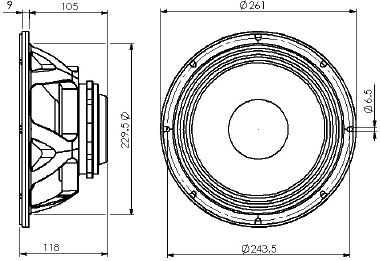

| Dimensional Drawings | |
 |
|
