BEYMA 10WR300 - 10" MID-BASS / BASS SPEAKER
|
|
|
BEYMA 10WR300 - 10" MID-BASS / BASS SPEAKER |
|
THE BEYMA 10WR300 WORKS NICE FOR BASS GUITAR SYSTEMS THAT REQUIRE WARM CLEAN MIDS & TIGHT DEEP BASS! |
|
|
|

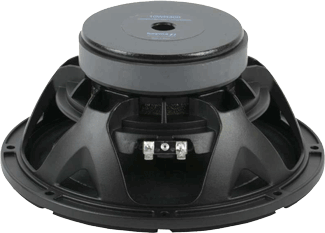

BEYMA 10WR300 |
|
4 Ohms
Item Price: $159.95 |
|
|
8 Ohms
Item Price: $159.95 |
|
|
WOOFER
MODEL - |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
10" |
|
Impedance |
4 or 8
ohms |
|
AES
Power Rating |
300 Watts |
| Program Power |
600
Watts |
|
Frequency
Response |
50Hz
- 5.0kHz |
|
Sensitivity
(1W/1m) |
95dB |
|
Voice
Coil Diameter |
2" /
50.8mm |
| Voice Coil Length | 15 mm |
| Air Gap Height | 8 mm |
| X Damage (peak to peak) | 30 mm |
| BL Factor | 14.3 N/A |
|
Mounting Information |
|
|
Overall Diameter |
10.28" / 261mm |
| Bolt Circle Diameter | 9.59" / 243.5mm |
| Baffle Cutout Diameter - | |
| - Front Mount | 9.06" / 230mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.10 ft3 / 3 Liters |
|
Overall
Depth |
4.52" / 115mm |
|
Net
Weight |
7.71 lb. / 3.5 kg. |
| Shipping Weight | 8.6 lb. / 3.9 kg. |
|
Materials |
|
| Basket | Cast Aluminum |
| Cone | Paper |
| Surround | Treated Cloth |
| Voice Coil | Copper |
| Magnet | High Currie Temperature Ferrite |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 47 Hz |
| Impedance (Re) | 6.0 ohms |
| Coil Inductance (Le) | 1.0 mH |
| Mechanical Q (Qms) | 3.9 |
| Electrical Factor (Qes) | .31 |
| Total Q (Qts) | .29 |
| Comp. Equivalent Vol. (Vas) | 1.78 ft3 / 50.5 Liters |
| Voice Coil Overhang (Xmax) | 6.0 mm |
| Moving Mass (Mms) | .039 kg. |
| Surface Area of Cone (Sd)m2 | 0.035m2 |
| Reference Efficiency | 1.7% |
| Displacement Volume (Vd) | 210 cm3 |
|
Frequency Response & Distortion Curves |
|
| Note: On axis frequency response measured with loudspeaker standing on infinite baffle in anechoic chamber, 1W @ 1m | |
|
|
|
|
Impedance Curve |
|
|
|
|
|
MOUNTING INFORMATION |
|
|
|
|
