BEYMA 10WRS300 - 10" MID-BASS / BASS SPEAKER

THE BEYMA 10WRS300 WORKS NICE FOR BASS GUITAR  SYSTEMS THAT REQUIRE WARM CLEAN MIDS & TIGHT BASS!

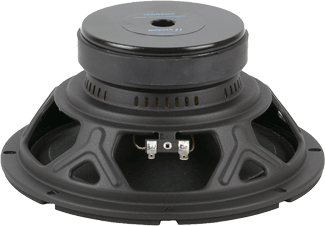

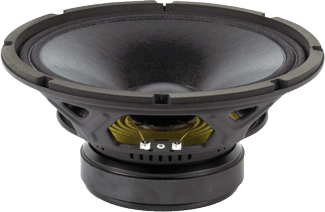

Beyma 10WRS300Beyma 10WRS300

BEYMA 10WRS300

8 Ohms

Item Price: $115.95

WOOFER MODEL - 10WRS300

Specifications

Nominal Basket Diameter

10" / 250mm

Impedance

8 ohms

AES Power Rating

300 Watts

Program Power  600 Watts

Frequency Response

55Hz - 5.0kHz

Sensitivity (1W/1m)

95dB

Voice Coil Diameter

2" / 50.8mm

Voice Coil Length 15 mm
Air Gap Height 8 mm
X Damage (peak to peak) 30 mm
BL Factor 13.9 N/A

Mounting Information

Overall Diameter 10.2" / 258mm
Bolt Circle Diameter 9.5" / 241mm
Baffle Cutout Diameter -
- Front Mount 9" / 230mm
No. Of Mounting Holes 8
Volume Displaced By Driver 0.10 ft3  /  3 Liters
Overall Depth 4.6" / 117mm
Net Weight 7.7 lb. / 3.5 kg.
Shipping Weight 8.6 lb. / 3.9 kg.

Materials

Basket Pressed Steel
Cone Paper
Surround Treated Cloth
Voice Coil Copper
Magnet High Currie Temperature Ferrite

Thiele-Small Parameters

Resonant Frequency (fs) 52 Hz
Impedance (Re) 6.1 ohms
Coil Inductance (Le) 1.0 mH
Mechanical Q (Qms) 5.5
Electrical Factor (Qes) .4
Total Q (Qts) .38
Comp. Equivalent Vol. (Vas) 1.48 ft3 / 42 Liters
Voice Coil Overhang (Xmax) 6.0 mm
Moving Mass (Mms) .039 kg.
Surface Area of Cone (Sd)m2 0.035m2
Reference Efficiency 1.4%
Displacement Volume (Vd) 210 cm3

Frequency Response & Impedance Curves

Beyma 10WRS300 Frequency

MOUNTING INFORMATION

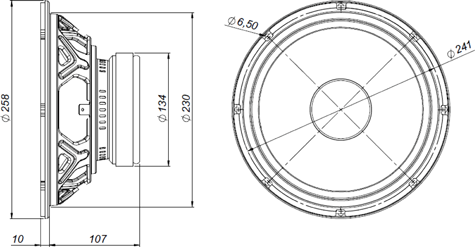

Beyma 10WRS300 Drawing
