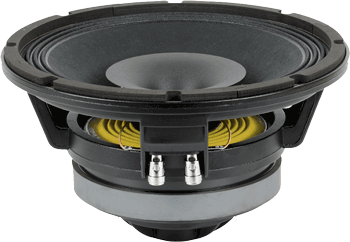

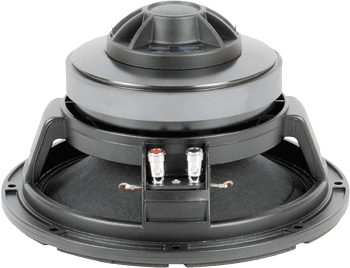

BEYMA 10CX300Fe - 10" COAXIAL SPEAKER
|
|
|
BEYMA 10CX300Fe - 10" COAXIAL SPEAKER |
|
THE BEYMA 10CX300FE 10" COAXIAL SPEAKER HAS GOOD PROJECTION & HAS A NICE SMOOTH SOUND! |
|
|
|
BEYMA 10CX300Fe |
|
Item Price: $399.95 |
|
|
COAXIAL MODEL |
10CX300Fe |
|
Specifications |
|
|
Low Frequency Woofer |
|
|
Nominal
Basket Diameter |
10" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
300
Watts |
| Program Power |
600
Watts |
|
Frequency
Response |
50Hz
- 8.0kHz |
|
Sensitivity
(1W/1m) |
96.5dB |
|
Voice
Coil Diameter |
2.5"
/ 63.5mm |
| Voice Coil Length | 17.5 mm |
| Air Gap Height | 10 mm |
| X Damage (peak to peak) | 30 mm |
| BL Factor | 11.65 N/A |
|
High Frequency Driver |
|
| Impedance | 16 ohms |
|
AES
Power Rating |
50 Watts AES @ 2kHz |
| Frequency Response | 2kHz to 20kHz |
|
Sensitivity
(1W/1m) |
104dB |
| Dispersion | 70° |
| Voice Coil Diameter | 1.75" / 44.45mm |
|
Mounting Information |
|
|
Overall Diameter |
10.26"
/ 260.5mm |
| Bolt Circle Diameter |
9.59"
/ 243.5mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 8.98" / 228mm |
| No. Of Mounting Holes | 8 |
|
Overall
Depth |
6.02"
/ 153mm |
|
Net
Weight |
11.24 lb. / 5.1 kg. |
| Shipping Weight | 12.13 lb. / 5.5 kg. |
|
Materials |
|
|
Low Frequency Woofer |
|
| Basket | Die-Cast Aluminum |
| Cone | Waterproof Paper |
| Surround | Cloth |
| Voice Coil | Aluminum |
| Magnet | Ferrite |
|
High Frequency Tweeter |
|
| Diaphragm | PM4 |
| Voice Coil | Edgewound Aluminum Ribbon |
| Voice Coil Former | Kapton |
| Magnet | Ferrite |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 48 Hz |
| Impedance (Re) | 5.2 ohms |
| Coil Inductance (Le) | .4 mH |
| Mechanical Q (Qms) | 5.3 |
| Electrical Factor (Qes) | .41 |
| Total Q (Qts) | .38 |
| Comp. Equivalent Vol. (Vas) | 2.21 ft3 / 62.7 Liters |
| Voice Coil Overhang (Xmax) | 6.75 mm |
| Surface Area of Cone (Sd)m2 | 0.038m2 |
| Moving Mass (Mms) | 35 Grams |
| Reference Efficiency | 1.65% |
| Displacement Volume (Vd) | 256 cm3 |
|

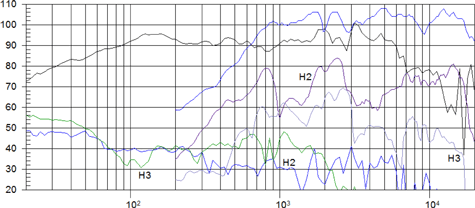

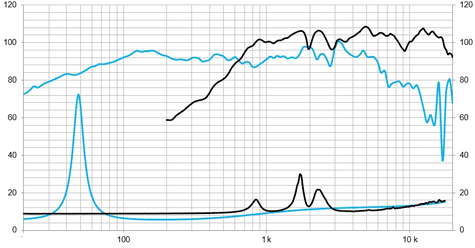

Frequency Response & Distortion Curves |
|
|
|
|
|

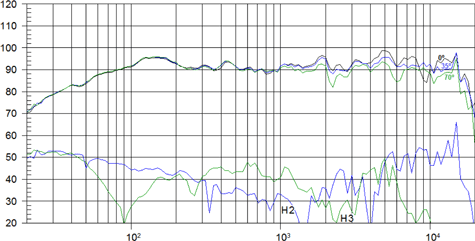

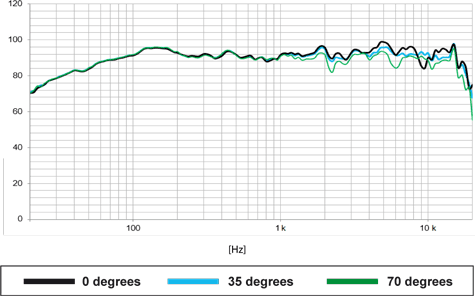

Filtered Frequency Response |
|
|
|
|
|

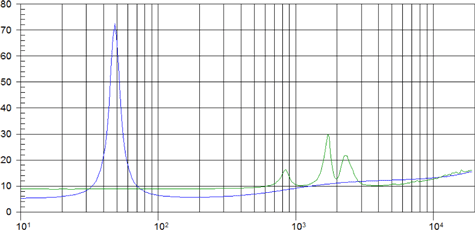

Impedance Curve |
|
|
|
|
|

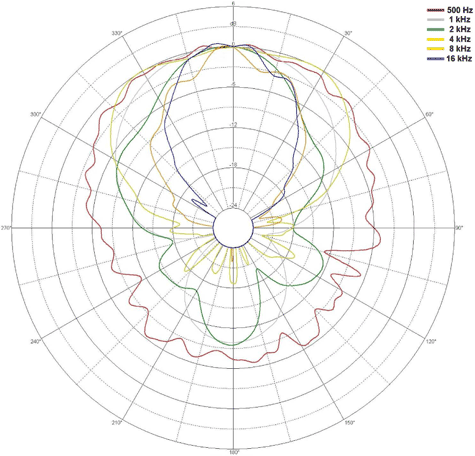

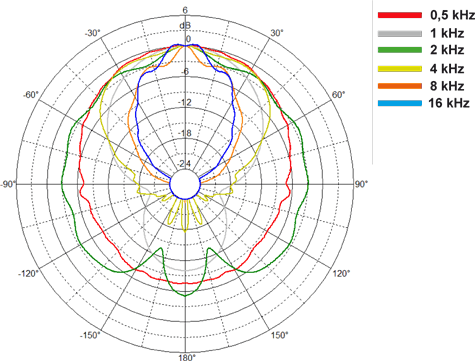

Polar Pattern |
|
|
|
|
|

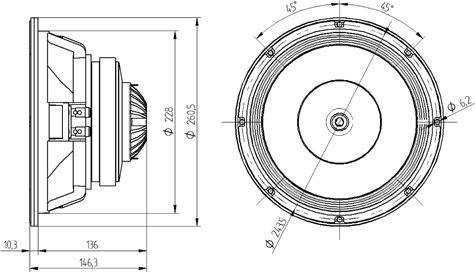

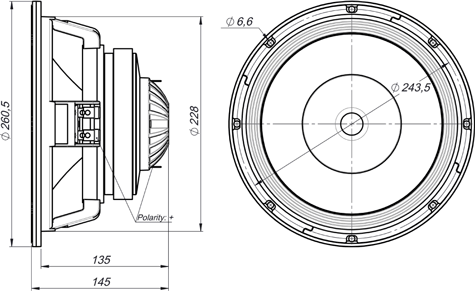

Mounting Dimensions |
|
|
|
|
