BEYMA 10XC25 - 10" COAXIAL SPEAKER
|
|
|
BEYMA 10XC25 - 10" COAXIAL SPEAKER |
|
THE BEYMA 10XC25 COAXIAL SPEAKER HAS SMOOTH SOUNDING HIGHS & A TIGHT BASS SOUND! |
|
|
|

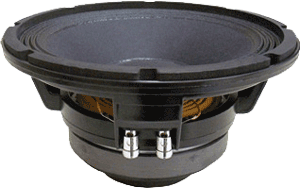

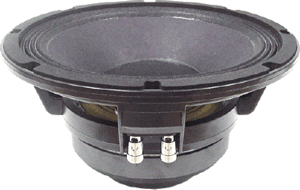

BEYMA 10XC25 |
|
Item Price: $324.95 |
|
|
Recommended 2-Way Crossover
Beyma FD2XC2 -
|
|
|
COAXIAL MODEL |
10XC25 |
|
Specifications |
|
|
Low Frequency Woofer |
|
|
Nominal
Basket Diameter |
10" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
250
Watts |
| Program Power |
500
Watts |
|
Frequency
Response |
55Hz
- 8.0kHz |
|
Sensitivity
(1W/1m) |
98dB |
|
Voice
Coil Diameter |
2.5"
/ 62.4mm |
| Recom. Enclosure Volume | .7-2.6 ft3 / 20-70 Liters |
| Voice Coil Length | 17 mm |
| Air Gap Height | 7 mm |
| X Damage (peak to peak) | 24 mm |
| BL Factor | 12.5 N/A |
| Magnetic Assembly Weight | 4.3 lb. / 9.46 kg. |
|
High Frequency Driver |
|
| Impedance | 16 ohms |
| Minimum Impedance | 10.9 ohms @ 4.5kHz |
|
AES
Power Rating |
40 Watts AES @ 1.5kHz |
| Frequency Response | 700Hz to 20kHz |
|
Sensitivity
(1W/1m) |
105dB |
| Dispersion | 90° |
| Voice Coil Diameter | 1.75" / 44.4mm |
| Flux Density | 1.8 T |
| BL Factor | 10.5 N/A |
|
Mounting Information |
|
|
Overall Diameter |
10.26"
/ 260.5mm |
| Bolt Circle Diameter |
9.59"
/ 243.5mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 8.98" / 228mm |
| - Rear Mount | 9.06" / 230mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.1 ft3 / 3 Liters |
|
Overall
Depth |
6.02"
/ 153mm |
|
Net
Weight |
11.22 lb. / 5.1 kg. |
| Shipping Weight | 12.98 lb. / 5.9 kg. |
|
Materials |
|
|
Low Frequency Woofer |
|
| Basket | Die-Cast Aluminum |
| Cone | Paper |
| Surround | Plasticised Cloth |
| Voice Coil | Aluminum |
| Magnet | Ferrite |
|
High Frequency Tweeter |
|
| Diaphragm | Polyester |
| Voice Coil | Edgewound Aluminum Ribbon |
| Voice Coil Former | Kapton |
| Magnet | Neodymium |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 53 Hz |
| Impedance (Re) | 6.3 ohms |
| Coil Inductance (Le) | 1.5 mH |
| Mechanical Q (Qms) | 10 |
| Electrical Factor (Qes) | .38 |
| Total Q (Qts) | .36 |
| Comp. Equivalent Vol. (Vas) | 2.33 ft3 / 66 Liters |
| Voice Coil Overhang (Xmax) | 5 mm |
| Surface Area of Cone (Sd)m2 | 0.038m2 |
| Reference Efficiency | 2.5% |
| Displacement Volume (Vd) | 190 cm3 |
|

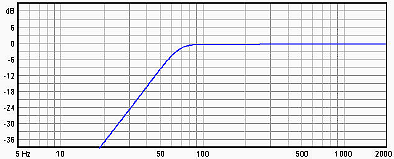

Predicted Low Frequency Response - Vb=40L, Fb=63Hz |
|
|
|
|
|

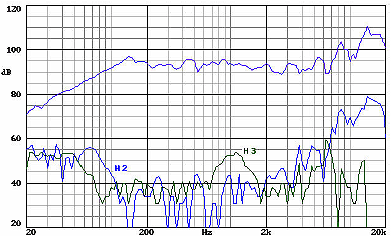

Frequency Response & Distortion Curves |
|
|
|
|
|

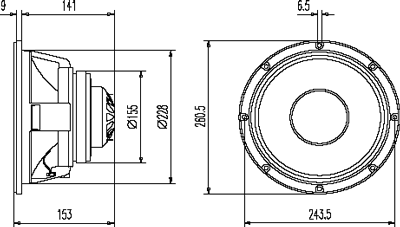

Mounting Dimensions |
|
|
|
|
