BEYMA 12CMV2 - 12" MID-BASS SPEAKER
|
|
|
BEYMA 12CMV2 - 12" MID-BASS SPEAKER |
|
THE BEYMA 12CMV2 IS A NICE 12 INCH SPEAKER FOR BASS GUITAR AND PA SPEAKER SYSTEMS! |
|
|
|

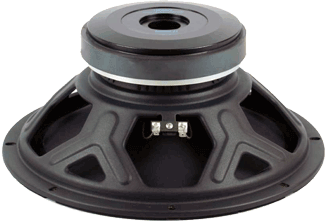

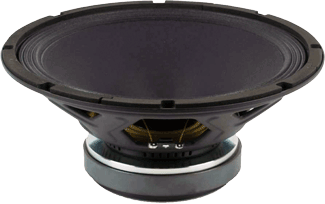

BEYMA 12CMV2 |
|
Item Price: $134.95 |
|
|
WOOFER
MODEL - |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
12" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
320 Watts |
| Program Power |
640
Watts |
|
Frequency
Response |
50Hz
- 6.0kHz |
|
Sensitivity
(1W/1m) |
96dB |
|
Voice
Coil Diameter |
2.5" /
63.5mm |
| Voice Coil Length | 17 mm |
| Air Gap Height | 7 mm |
| X Damage (peak to peak) | 29 mm |
| BL Factor | 13.7 N/A |
|
Mounting Information |
|
|
Overall Diameter |
12.2" / 310mm |
| Bolt Circle Diameter | 11.5" / 292mm |
| Baffle Cutout Diameter - | |
| - Front Mount | 11" / 280mm |
| No. Of Mounting Holes | 8 |
|
Overall
Depth |
5.1" / 130mm |
|
Net
Weight |
10.1 lb. / 4.6 kg. |
| Shipping Weight | 11.7 lb. / 5.3 kg. |
|
Materials |
|
| Basket | Steel |
| Cone | Paper |
| Surround | Treated Cloth |
| Voice Coil | Copper |
| Magnet | Ferrite |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 49 Hz |
| Impedance (Re) | 6.0 ohms |
| Coil Inductance (Le) | 1.0 mH |
| Mechanical Q (Qms) | 3.9 |
| Electrical Factor (Qes) | .54 |
| Total Q (Qts) | .47 |
| Comp. Equivalent Vol. (Vas) | 2.68 ft3 / 76 Liters |
| Voice Coil Overhang (Xmax) | 7 mm |
| Moving Mass (Mms) | 54 Grams |
| Surface Area of Cone (Sd)m2 | 0.053m2 |
| Reference Efficiency | 1.7% |
| Displacement Volume (Vd) | 371 cm3 |
|

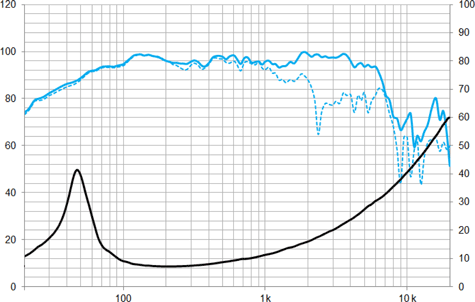

Frequency Response & Impedance Curve |
|
|
|
|
|

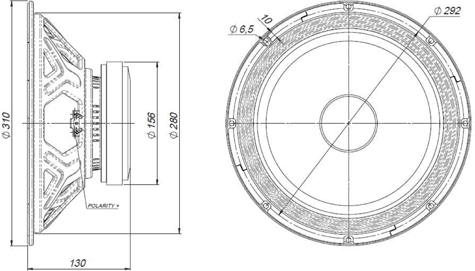

MOUNTING INFORMATION |
|
|
|
|
