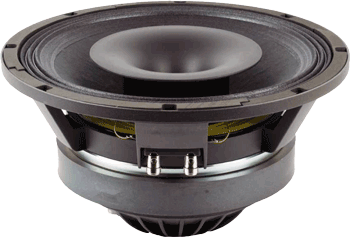

BEYMA 12CXA400FE - 12" COAXIAL SPEAKER
|
|
|
BEYMA 12CXA400FE - 12" COAXIAL SPEAKER |
|
THE BEYMA 12CXA400FE HAS EXTREMELY SMOOTH HIGHS THANKS TO ITS' SPECIAL POLYESTER/TITANIUM DIAPHRAGM! |
|
|
|
NEW BEYMA 12CXA400Fe |
|
Item Price: $424.95 |
|
|
Recommended 2-Way Crossover
Beyma FD2XA -
|
|
|
COAXIAL
MODEL |
|
|
Low Frequency Specifications |
|
|
Nominal
Basket Diameter |
12" |
|
Impedance |
8
ohms |
|
AES Power Rating |
400 watts |
| Program Power Rating |
800
watts |
|
LF Frequency Range |
40Hz
- 1.5kHz |
|
Sensitivity
(1W/1m) |
96dB |
|
Voice
Coil Diameter |
4"
/ 100mm |
| Voice Coil Length | 16 mm |
| Air Gap Height | 10 mm |
| X Damage (peak to peak) | 51 mm |
|
High Frequency Specifications |
|
| Rated Impedance | 16 ohms |
| AES Power Rating | 80 watts |
| Program Power Rating | 160 watts |
| HF Frequency Range |
1.0Hz
- 20kHz |
| Recommended HF Crossover Frequency | 1.5kHz |
| Sensitivity (1W/1m) | 105dB SPL |
| Voice Coil Diameter | 2.8" / 71.1mm |
| Dispersion | 60° conical |
|
Mounting Information |
|
|
Overall Diameter |
12.3" / 312mm |
| Bolt Circle Diameter | 11.73" / 298mm |
| Baffle Cutout Diameter | 11.11" / 283mm |
|
No.
Of Mounting Holes |
8 |
| Volume Displaced By Driver | 0.23 ft3 / 6.5 Liters |
| Overall Depth | 6.5" / 165mm |
| Net Weight | 25.11 lb. / 11.3 kg. |
| Shipping Weight | 25.8 lb. / 11.7 kg. |
|
Low Frequency Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Waterproof Paper |
| Surround | Plasticised Cloth |
| Voice Coil | Edgewound Aluminum Ribbon |
| Demodulation Ring | Aluminum |
| Magnet | Ferrite |
|
High Frequency Materials |
|
| Diaphragm | Titanium/Polyester |
| Voice Coil | Edgewound Aluminum Ribbon |
| Dome | Titanium |
| Surround | Polyester |
| Voice Coil Former | Kapton |
| Demodulation Ring | Aluminum |
| Magnet | Ferrite |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (Fs) | 42 Hz |
| Impedance (Re) | 6.6 ohms |
| Mechanical Q (Qms) | 7.2 |
| Electrical Factor(Qes) | .26 |
| Total Q (Qts) | .25 |
| Comp. Equivalent Vol. (Vas) |
3.32 ft3 / 94 Liters |
| Voice Coil Overhang (Xmax) | 5.8 mm |
| Effective Surface Area | .055m2 |
| BL Factor | 19.8 N/A |
| Moving Mass (Mms) | 66 Grams |
| Reference Efficiency | 2.2% |
| Voice Coil Inductance (Le @ 1kHz) | 1.1mH |
|

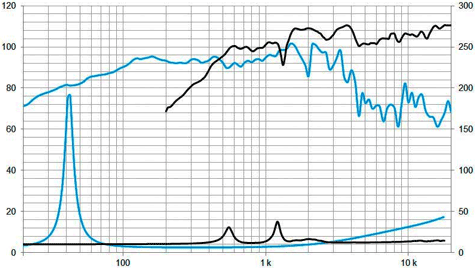

Low Frequency - High Frequency Response & Impedance Curves |
|
 |
|

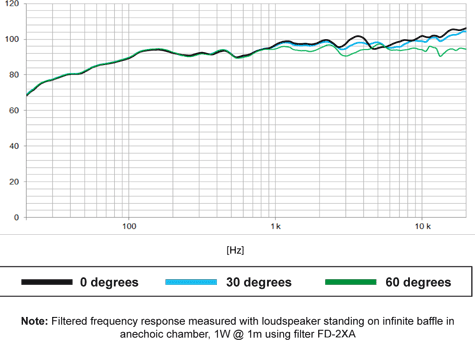

| Filtered Frequency Response | |
 |
|

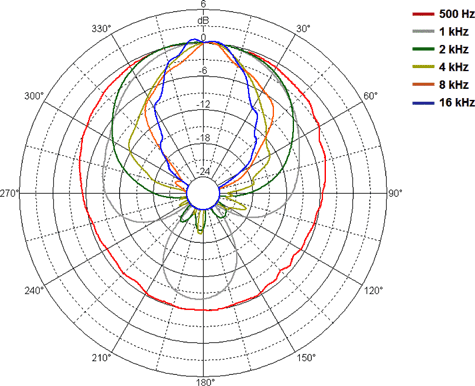

| Polar Response | |
 |
|

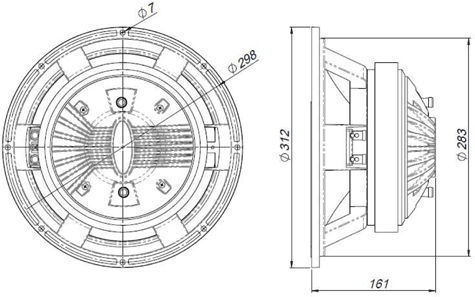

| Mounting Dimensions | |
 |
|
