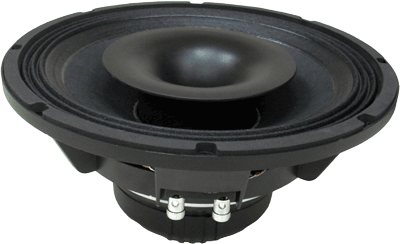

BEYMA 12CXA400ND - 12" NEODYMIUM COAXIAL SPEAKER
|
|
|
BEYMA 12CXA400ND - 12" NEODYMIUM COAXIAL SPEAKER |
|
EXTREMELY SMOOTH HIGHS THANKS TO ITS' SPECIAL MYLAR/TITANIUM DIAPHRAGM. HORN DELIVERS A 60° CONTROLLED DISPERSION! |
|
|
|
NEW BEYMA 12CXA400Nd |
|
Item Price: $719.95 |
|
|
Recommended 2-Way Crossover
Beyma FD2XA -
|
|
|
WOOFER
MODEL |
|
|
Low Frequency Specifications |
|
|
Nominal
Basket Diameter |
12" |
|
Impedance |
8
ohms |
|
AES Power Rating |
400 watts |
| Program Power Rating |
800
watts |
|
Frequency Range |
35Hz
- 1.5kHz |
|
Sensitivity
(1W/1m) |
98dB |
|
Voice
Coil Diameter |
4"
/ 100mm |
| BL Factor | 18.2 N/A |
| Moving Mass | .048 kg. |
| Voice Coil Length | 16 mm |
| Air Gap Height | 9 mm |
| X Damage (peak to peak) | 28 mm |
| Magnet Weight | 9.24 lb. / 4.2 kg. |
|
High Frequency Specifications |
|
| Rated Impedance | 16 ohms |
| AES Power Rating | 90 watts @ 1.0kHz |
| Program Power Rating | 180 watts @ 1.0kHz |
|
Frequency R |
800Hz - 20kHz |
| Sensitivity (1W/1m) | 105dB SPL |
| Voice Coil Diameter | 2.8" / 71.1mm |
| Flux Density | 1.6T |
| Dispersion | 60° conical |
|
Mounting Information |
|
|
Overall Diameter |
12.27" / 311.7mm |
| Bolt Circle Diameter | 11.73" / 298mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 11.13" / 282.6mm |
| - Rear Mount | 11.26" / 286mm |
|
No.
Of Mounting Holes |
8 |
| Volume Displaced By Driver | 0.23 ft3 / 6.5 Liters |
| Overall Depth | 6.06" / 154mm |
| Net Weight | 15.83 lb. / 7.18 kg. |
| Shipping Weight | 17.75 lb. / 8.05 kg. |
|
Low Frequency Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Waterproof Paper |
| Surround | Plasticised Cloth |
| Voice Coil | Edgewound Aluminum Ribbon |
| Demodulation Ring | Aluminum |
| Magnet | Neodymium |
|
High Frequency Materials |
|
| Diaphragm | Titanium |
| Voice Coil | Edgewound Aluminum Ribbon |
| Dome | Titanium |
| Surround | Mylar |
| Voice Coil Former | Kapton |
| Demodulation Ring | Aluminum |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (Fs) | 45 Hz |
| Impedance (Re) | 6.6 ohms |
| Mechanical Q (Qms) | 6.24 |
| Electrical Factor(Qes) | .28 |
| Total Q (Qts) | .26 |
| Comp. Equivalent Vol. (Vas) |
3.6 ft3 / 102.2 Liters |
| Voice Coil Overhang (Xmax) | 6.0 mm |
| Effective Surface Area | .055m2 |
| Reference Efficiency | 3.25% |
| Displacement Volume | 210 cm3 |
| Voice Coil Inductance (Le @ 1kHz) | 1.0mH |
|

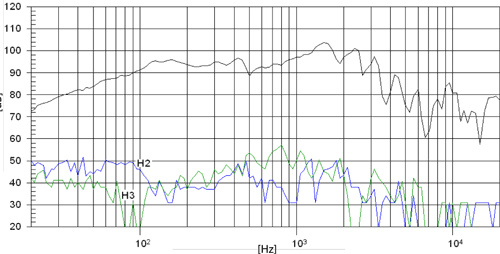

Low Frequency Response & Distortion Curves |
|
 |
|

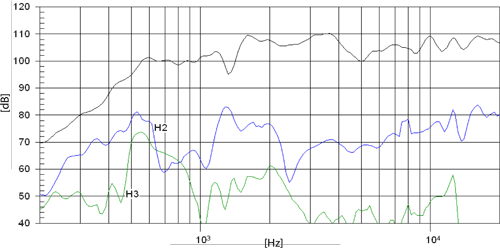

| High Frequency Response & Distortion Curves | |
 |
|

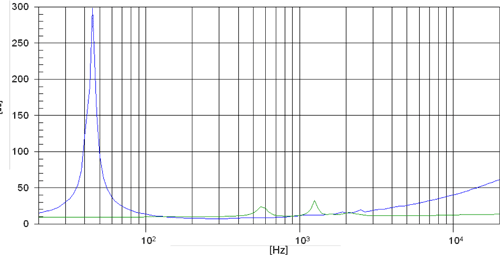

| Impedance Curve | |
 |
|

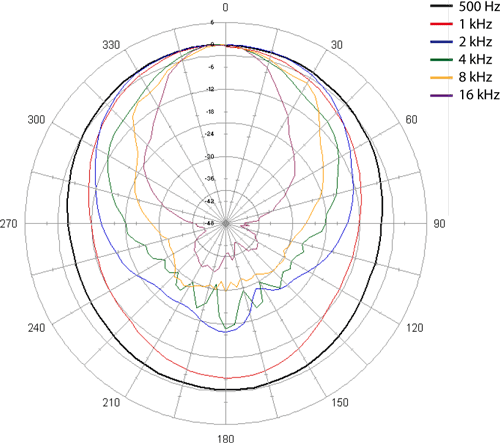

| Polar Pattern | |
 |
|

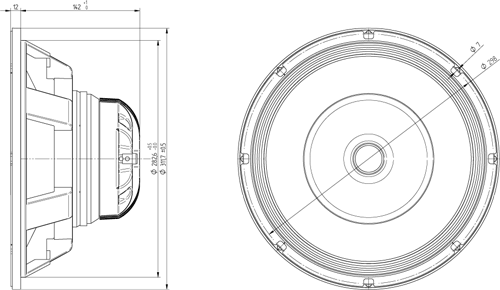

| Mounting Dimensions | |
 |
|
