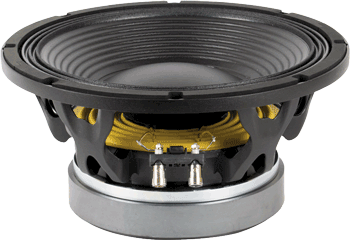

BEYMA 12LEX1000FE - 12" HIGH POWER SUBWOOFER
|
|
|
BEYMA 12LEX1000FE - 12" HIGH POWER SUBWOOFER |
|
THE BEYMA 12LEX1000FE DELIVERS A POWERFUL CHEST POUNDING BASS WITH LOW DISTORTION & GOOD CLEAR MIDS! |
|
|
|
Item Price: $419.95 |
|
WOOFER MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
12" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
1,000
Watts |
| Program Power |
2,000
Watts |
|
Frequency
Response |
50Hz
- 1.5kHz |
|
Sensitivity
(1W/1m) |
95dB |
|
Voice
Coil Diameter |
3.5" /
88.9mm |
| Recom. Enclosure Volume | 2.0 ft3 / 50 Liters |
| Voice Coil Length | 27 mm |
| Air Gap Height | 12 mm |
| X Damage (peak to peak) | 51 mm |
| BL Factor | 24.6 N/A |
|
Mounting Information |
|
|
Overall Diameter |
12.4" / 315mm |
|
Bolt
Circle Diameter |
11.7"
/ 297.5mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 11.1" / 282mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.12 ft3 / 3.5 Liters |
|
Overall
Depth |
6.5"
/ 166mm |
|
Net
Weight |
22.9 lb. / 10.4 kg. |
| Shipping Weight | 24.4 lb. / 11.1 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Waterproof Paper |
| Surround | Treated Cloth |
| Voice Coil | Edgewound In/Out Copper Wire |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 49 Hz |
| Impedance (Re) | 5.4 ohms |
| Coil Inductance (Le) | 1.7 mH |
| Mechanical Q (Qms) | 3.6 |
| Electrical Factor (Qes) | .32 |
| Total Q (Qts) | .3 |
| Comp. Equivalent Vol. (Vas) | 1.36 ft3 / 38.4 Liters |
| Voice Coil Overhang (Xmax) | 11.0 mm |
| Diaphragm Mass (Mms) | 118 Grams |
| Surface Area of Cone (Sd)m2 | 0.055 |
| Reference Efficiency | 1.3% |
| Displacement Volume (Vd) | 605 cm3 |

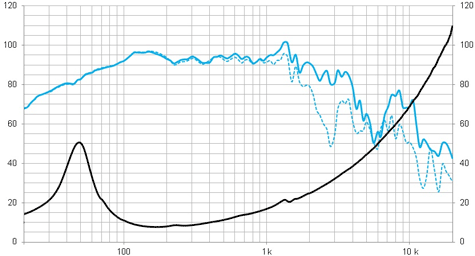

| Frequency Response & Impedance Curves | |
 |
|

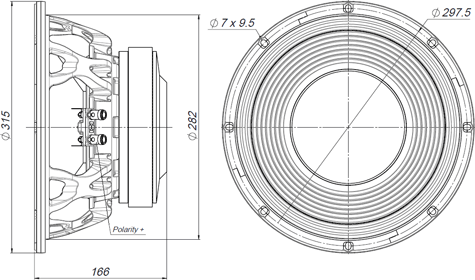

| Mounting Dimensions | |
 |
|
