BEYMA 12LX60 - 12" PRO HIGH POWER WOOFER
|
|
|
BEYMA 12LX60 - 12" PRO HIGH POWER WOOFER |
|
THE BEYMA 12LX60v2 DELIVERS A POWERFUL CHEST POUNDING BASS WITH LOW DISTORTION & GOOD CLEAR MIDS! |
|
|
|
Upgraded To 12LX60v2 |
|
WOOFER MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
12" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
700
Watts |
| Program Power |
1,400
Watts |
|
Frequency
Response |
35Hz
- 2.0kHz |
|
Sensitivity
(1W/1m) |
96dB |
|
Voice
Coil Diameter |
4" / 100mm |
| Recom. Enclosure Volume | .7-2.24 ft3 / 20-60 Liters |
| Voice Coil Length | 20 mm |
| Air Gap Height | 10 mm |
| X Damage (peak to peak) | 47 mm |
| BL Factor | 20 N/A |
| Magnetic Assembly Weight | 19.84 lb. / 9 kg. |
|
Mounting Information |
|
|
Overall Diameter |
12.6" / 320mm |
|
Bolt
Circle Diameter |
11.8"
/ 300mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 11.26" / 286mm |
| - Rear Mount | 11.02" / 280mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.19 ft3 / 5.5 Liters |
|
Overall
Depth |
5.1"
/ 130mm |
|
Net
Weight |
21.39 lb. / 9.7 kg. |
| Shipping Weight | 22.92 lb. / 10.4 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Paper |
| Surround | Treated Cloth |
| Voice Coil | Edgewound Copper Wire |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 49 Hz |
| Impedance (Re) | 5.1 ohms |
| Coil Inductance (Le) | 2.1 mH |
| Mechanical Q (Qms) | 15.3 |
| Electrical Factor (Qes) | .4 |
| Total Q (Qts) | .38 |
| Comp. Equivalent Vol. (Vas) | 1.52 ft3 / 43 Liters |
| Voice Coil Overhang (Xmax) | 9.0 mm |
| Diaphragm Mass (Mmms) | 102 Grams |
| Surface Area of Cone (Sd)m2 | 0.055 |
| Reference Efficiency | 1.21% |
| Displacement Volume (Vd) | 500 cm3 |

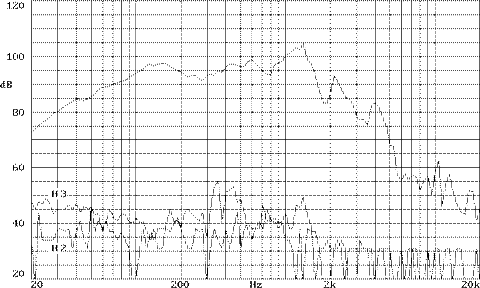

| Frequency Response & Distortion Curves | |
 |
|
|

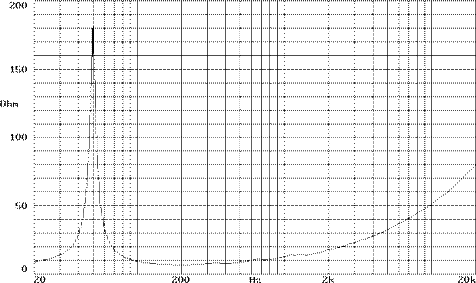

Impedance Curve |
|
 |
|

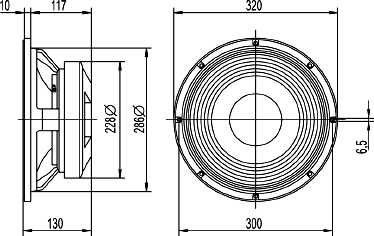

| Mounting Dimensions | |
 |
|
