BEYMA 12SCF1300FE-4 - 12" CARBON FIBER LOW FREQUENCY TRANSDUCER
|
|
|
BEYMA 12SCF1300FE-4 - 12" CARBON FIBER LOW FREQUENCY TRANSDUCER |
|
BEYMA 12SCF1300FE-4 HAS A STRONG CARBON FIBER WATERPROOF CONE THAT DELIVERS A POWERFUL CHEST POUNDING BASS! |
|
|
|
4 Ohms
Item Price: $699.00 |
|
WOOFER MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
12" |
|
Impedance |
4
ohms |
|
AES
Power Rating |
1,300
Watts |
| Program Power |
2,600
Watts |
|
Frequency
Response |
40Hz
- 1.6kHz |
|
Sensitivity
(1W/1m) |
94dB |
|
Voice
Coil Diameter |
4" /
101.6mm |
| Voice Coil Length | 30 mm |
| Air Gap Height | 15 mm |
| X Damage (peak to peak) | 56 mm |
| BL Factor | 23 N/A |
|
Mounting Information |
|
|
Overall Diameter |
12.4" / 315mm |
|
Bolt
Circle Diameter |
11.7"
/ 297.5mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 11.1" / 282mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.12 ft3 / 3.5 Liters |
|
Overall
Depth |
6.9"
/ 174mm |
|
Net
Weight |
29.5 lb. / 13.4 kg. |
| Shipping Weight | 31.1 lb. / 14.1 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Waterproof Carbon Fiber |
| Surround | Treated Cloth |
| Voice Coil | Edgewound In/Out Copper Wire |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 40 Hz |
| Impedance (Re) | 3.4 ohms |
| Coil Inductance (Le) | 1.7 mH |
| Mechanical Q (Qms) | 9.3 |
| Electrical Factor (Qes) | .24 |
| Total Q (Qts) | .23 |
| Comp. Equivalent Vol. (Vas) | 1.72 ft3 / 48.7 Liters |
| Voice Coil Overhang (Xmax) | 12.0 mm |
| Diaphragm Mass (Mms) | 139 Grams |
| Surface Area of Cone (Sd)m2 | 0.055 |
| Reference Efficiency | 1.2% |
| Displacement Volume (Vd) | 648 cm3 |

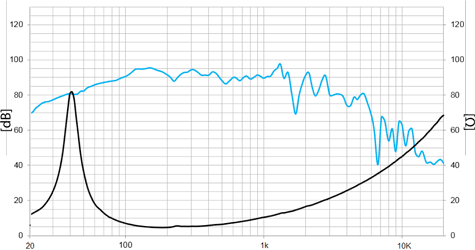

| Frequency Response & Impedance Curves | |
 |
|

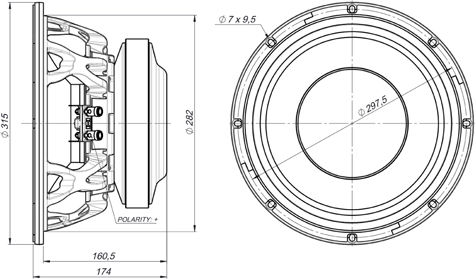

| Mounting Dimensions | |
 |
|
