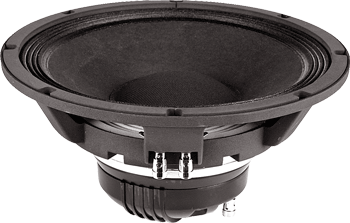

BEYMA 12XA30ND - 12" NEODYMIUM COAXIAL SPEAKER
|
|
|
BEYMA 12XA30ND - 12" NEODYMIUM COAXIAL SPEAKER |
|
EXTREMELY SMOOTH HIGHS THANKS TO ITS' SPECIAL POLYESTER/TITANIUM DIAPHRAGM! |
|
|
|
BEYMA 12XA30ND |
|
Item Price: $649.95 |
|
|
Recommended 2-Way Crossover
Beyma FD2XA -
|
|
|
COAXIAL
MODEL |
|
|
Low Frequency Specifications |
|
|
Nominal
Basket Diameter |
12" |
|
Impedance |
8
ohms |
|
Power Rating |
350
watts |
| Program Power |
700
watts |
|
Frequency Range |
35Hz
- 4.0kHz |
|
Sensitivity
(1W/1m) |
98dB |
|
Voice
Coil Diameter |
4"
/ 100mm |
| Recom. Enclosure Volume | 1.49-3.53 ft3 / 40-100 Liters |
| BL Factor | 18.2 N/A |
| Moving Mass | .072 kg. |
| Voice Coil Length | 16 mm |
| Air Gap Height | 9 mm |
| X Damage (peak to peak) | 28 mm |
| Magnet Weight | 9.24 lb. / 4.2 kg. |
|
High Frequency Specifications |
|
| Rated Impedance | 16 ohms |
| Minimum Impedance | 13.5 ohms @ 3.5kHz |
| Power Rating | 90 watts AES @ 1.0kHz |
|
Frequency R |
500Hz - 20kHz |
| Sensitivity (1W/1m) | 105dB SPL |
| Voice Coil Diameter | 2.87" / 72.2mm |
| Flux Density | 1.6T |
| BL Factor | 15.3 N/A |
| Dispersion | 80° conical |
|
Mounting Information |
|
|
Overall Diameter |
12.28" / 312mm |
| Bolt Circle Diameter | 11.61" / 295mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 11.18" / 284mm |
| - Rear Mount | 11.18" / 284mm |
|
No.
Of Mounting Holes |
8 |
| Volume Displaced By Driver | 0.23 ft3 / 6.5 Liters |
| Overall Depth | 5.98" / 152mm |
| Net Weight | 13.86 lb. / 6.3 kg. |
| Shipping Weight | 15.4 lb. / 7.0 kg. |
|
Low Frequency Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Paper |
| Surround | Plasticised Cloth |
| Voice Coil | Edgewound Aluminum Ribbon |
| Magnet | Neodymium |
|
High Frequency Materials |
|
| Diaphragm | Titanium |
| Voice Coil | Edgewound Aluminum Ribbon |
| Dome | Titanium |
| Surround | Polyester |
| Voice Coil Former | Kapton |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (Fs) | 35 Hz |
| Impedance (Re) | 6.8 ohms |
| Mechanical Q (Qms) | 7.98 |
| Electrical Factor(Qes) | .22 |
| Total Q (Qts) | .21 |
| Comp. Equivalent Vol. (Vas) |
6.07 ft3 / 172 Liters |
| Voice Coil Overhang (Xmax) | 4.0 mm |
| Effective Surface Area | .053m2 |
| Reference Efficiency | 4% |
| Displacement Volume | 210 cm3 |
| Voice Coil Inductance (Le @ 1kHz) | 1.3mH |
|

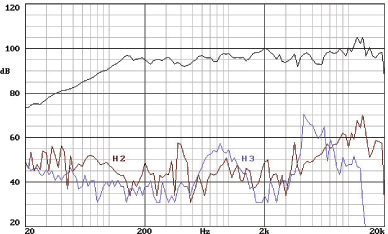

Frequency Response & Distortion Curves |
|
 |
|

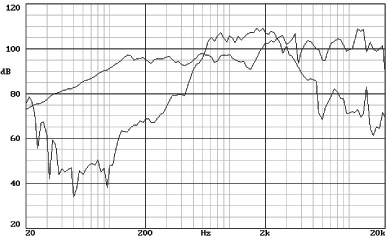

| Frequency Response of HF & LF Drivers | |
 |
|

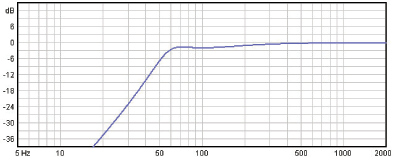

| Predicted Low Frequency Response | |
 |
|

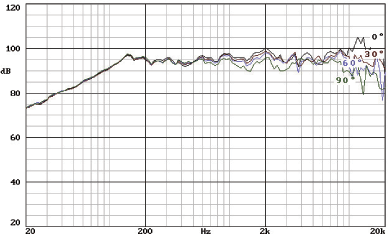

| Frequency Response Out Of Axis Dimensions | |
 |
|
| Mounting Dimensions | |
 |
|
