BEYMA 12LEX1300ND - 12" HIGH POWER NEODYMIUM SUBWOOFER SPEAKER
|
|
|
BEYMA 12LEX1300ND - 12" HIGH POWER NEODYMIUM SUBWOOFER SPEAKER |
|
THE BEYMA 12LEX1300ND IS A VERY STRONG SOUNDING 12" SUBWOOFER SPEAKER THAT HANDLES 2,600 WATTS PROGRAM! |
|
|
|

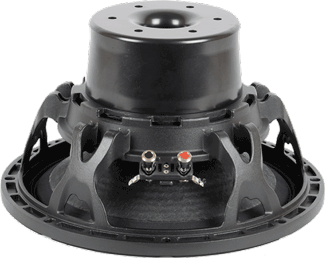

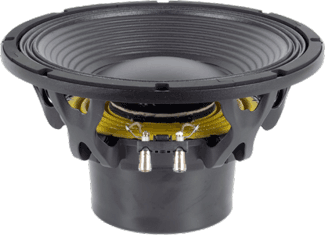

BEYMA 12LEX1300ND |
|
Item Price: $566.95 |
|
|
SPEAKER
MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
12" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
1,300
Watts |
| Program Power |
2,600
Watts |
|
Frequency
Response |
45Hz
- 1.5kHz |
|
Sensitivity
(1W/1m) |
96dB |
|
Voice
Coil Diameter |
4"
/ 100mm |
| Voice Coil Length | 28 mm |
| Air Gap Height | 14 mm |
| X Damage (peak to peak) | 65 mm |
|
Mounting Information |
|
|
Overall Diameter |
12.4" / 315mm |
|
Bolt
Circle Diameter |
11.7"
/ 297.5mm |
| Baffle Cutout Diameter | 11.1" / 282mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.12 ft3 / 3.5 Liters |
|
Overall
Depth |
6.9" / 176mm |
|
Net
Weight |
18.3 lb. / 8.3kg. |
| Shipping Weight | 19.8 lb. / 9 kg. |
|
Materials |
|
| Basket | Cast Aluminum |
| Cone | Waterproof Front & Back Paper |
| Surround | Treated Cloth |
| Spider | Double |
| Voice Coil | Copper |
| Magnet | Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 45 Hz |
|
Impedance
(Re) |
5 ohms |
| Coil Inductance (Le) | 1.3 mH |
| Mechanical Q (Qms) | 4.2 |
| Electrical Factor(Qes) | .25 |
| Total Q (Qts) | .24 |
| Comp. Equivalent Vol. (Vas) | 1.52 ft3 / 43 Liters |
| Voice Coil Overhang (Xmax) | 11.0mm |
| Effective Surface Area (Sd) | .0550 m2 |
| Diaphragm Mass (Mms) | 125 Grams |
| Reference Efficiency | 1.5% |
| BL Factor | 26.4 T-M |
| Displacement Volume (Vd) | 605 cm3 |
|
Low Frequency Response & Distortion Graph |
|
| Impedance Curve | |
| Power Compression Loss | |
| Dimensional Drawing | |
