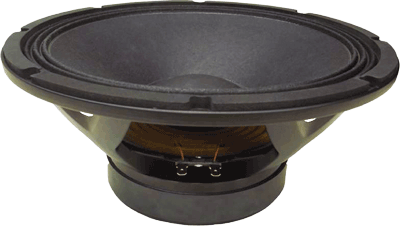

BEYMA 12MC500 - 12" MID-BASS / BASS SPEAKER
|
|
|
BEYMA 12MC500 - 12" MID-BASS / BASS SPEAKER |
|
WORKS WELL IN SPEAKER SYSTEMS THAT REQUIRE EXTENDED PRECISE MIDRANGE WITH TIGHT PUNCHY BASS! |
|
|
|
BEYMA 12MC500 |
|
NEW 4 Ohm Version
Item Price: $190.95 |
|
|
8 Ohm Version
Item Price: $190.95 |
|
|
SPEAKER
MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
12" |
|
Impedance |
4 or 8
ohms |
|
AES
Power Rating |
500
Watts |
| Program Power |
1,000
Watts |
|
Frequency
Response |
50Hz
- 5.5kHz |
|
Sensitivity
(1W/1m) |
97.8dB |
|
Voice
Coil Diameter |
2.5"
/ 63.5mm |
| Recom. Enclosure Volume | 1.06-3.53 ft3 / 30-100 Liters |
| Voice Coil Length | 19.5 mm |
| Air Gap Height | 10 mm |
| X Damage (peak to peak) | 40 mm |
|
Mounting Information |
|
|
Overall Diameter |
12.28" / 312mm |
|
Bolt
Circle Diameter |
11.59"
/ 294.5mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 10.94" / 278mm |
| - Rear Mount | 10.83" / 275mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.14 ft3 / 4 Liters |
|
Overall
Depth |
5.51" / 140mm |
|
Net
Weight |
12.92 lb. / 5.86 kg. |
|
Materials |
|
| Basket | Cast Aluminum |
| Cone | Waterproof Paper |
| Surround | Treated Cloth |
| Spider | Conex |
| Voice Coil | Copper |
| Metal Parts | Anti-Corrosion Coated |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 57 Hz |
|
Impedance
(Re) |
5.5 ohms |
| Coil Inductance (Le) | .7 mH |
| Mechanical Q (Qms) | 8.58 |
| Electrical Factor(Qes) | .39 |
| Total Q (Qts) | .38 |
| Comp. Equivalent Vol. (Vas) | 1.94 ft3 / 54.9 Liters |
| Voice Coil Overhang (Xmax) | 8.0mm |
| Effective Surface Area (Sd) | .0550 m2 |
| Reference Efficiency | 2.53% |
| BL Factor | 17.23N/A |
|

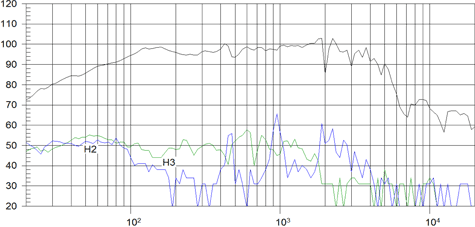

Low Frequency Response & Distortion Graph |
|
 |
|

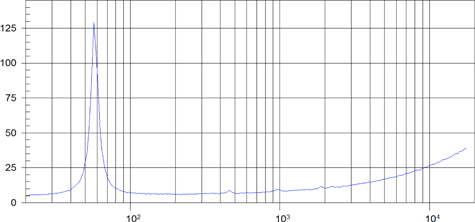

| Impedance Graph | |
 |
|
