BEYMA 12MCB700 - 12" MID-BASS / LOW FREQUENCY SPEAKER

THE BEYMA 12MCB700 DELIVERS SMOOTH VERY TIGHT MID-BASS & LOW FREQUENCY SOUND WITH 700 WATTS AES POWER HANDLING!

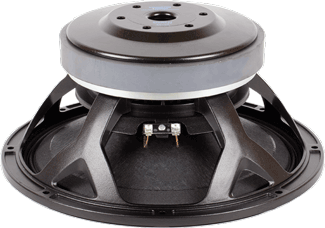

Beyma 12MCB700Beyma 12MCB700

BEYMA 12MCB700

Item Price: $249.95

SPEAKER MODEL  - 12MCB700

Specifications

Nominal Basket Diameter

12" / 300mm

Impedance

8 ohms

AES Power Rating

700 Watts

Program Power  1,400 Watts

Frequency Response

55Hz - 4kHz

Sensitivity (1W/1m)

98dB

Voice Coil Diameter

3" / 76.2mm

Recom. Enclosure Volume 1.41 ft3  /  40 Liters
Voice Coil Length 18 mm
Air Gap Height 9.5 mm
X Damage (peak to peak) 45 mm

Mounting Information

Overall Diameter 12.28" / 312mm
Bolt Circle Diameter 11.6" / 295mm
Baffle Cutout Diameter-
- Front Mount 10.9" / 278mm
No. Of Mounting Holes 8
Volume Displaced By Driver 0.14 ft3  /  4 Liters
Overall Depth 5.7" / 145mm
Net Weight 17.2 lb. / 7.8 kg.
Shipping Weight 20.9 lb. / 9.5 kg.

Materials

Basket Cast Aluminum
Cone Waterproof Paper
Surround Treated Cloth
Voice Coil Copper
Metal Parts Anti-Corrosion Coated
Magnet Ferrite

Thiele-Small Parameters

Resonant Frequency (fs) 51 Hz
Impedance (Re) 5.4 ohms
Coil Inductance (Le) .9 mH
Mechanical Q (Qms) 3.9
Electrical Factor(Qes) .29
Total Q (Qts) .27
Comp. Equivalent Vol. (Vas) 2.1 ft3 / 59.5 Liters
Voice Coil Overhang (Xmax) 7.0mm
Moving Mass (Mms) 69 Grams
Effective Surface Area (Sd) .0550 m2
Reference Efficiency 2.7%
BL Factor 20.4N/A

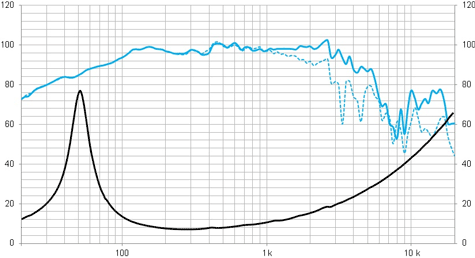

Frequency Response & Impedanc Curves

Beyma 12MCB700 Frequency

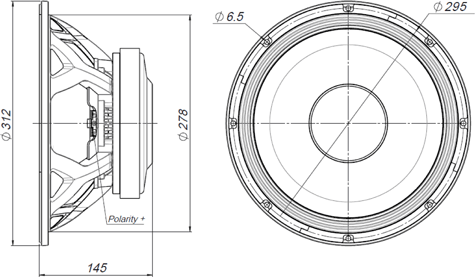

MOUNTING INFORMATION
Beyma 12MCB700 Drawing
