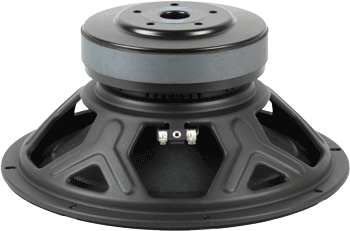

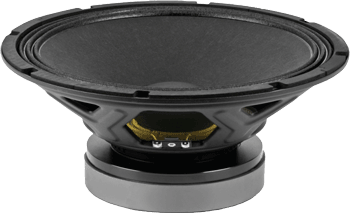

BEYMA 12MCS500 - 12" MID-BASS SPEAKER
|
|
|
BEYMA 12MCS500 - 12" MID-BASS SPEAKER |
|
BEYMA 12MCS500 DELIVERS A DETAILED MIDRANGE WITH TIGHT PUNCHY BASS & LOW DISTORTION! |
|
|
|
BEYMA 12MCS500 |
|
Item Price: $170.95 |
|
|
SPEAKER
MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
12" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
500
Watts |
| Program Power |
1,000
Watts |
|
Frequency
Response |
65Hz
- 5.0kHz |
|
Sensitivity
(1W/1m) |
97dB |
|
Voice
Coil Diameter |
2.5"
/ 63.5mm |
| Recom. Enclosure Volume | 1.06-3.53 ft3 / 30-100 Liters |
| Voice Coil Length | 19.5 mm |
| Air Gap Height | 10 mm |
| X Damage (peak to peak) | 40 mm |
|
Mounting Information |
|
|
Overall Diameter |
12.2" / 310mm |
|
Bolt
Circle Diameter |
11.5"
/ 292mm |
| Baffle Cutout Diameter | 11.02" / 280mm |
| No. Of Mounting Holes | 8 |
|
Overall
Depth |
5.55" / 141mm |
|
Net
Weight |
13.2 lb. / 6 kg. |
|
Shipping Weight |
14.8 lb. / 6.7 kg. |
|
Materials |
|
| Basket | Pressed Steel |
| Cone | Waterproof Paper |
| Surround | Treated Cloth |
| Spider | Conex |
| Voice Coil | Copper |
| Metal Parts | Anti-Corrosion Coated |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 62 Hz |
|
Impedance
(Re) |
5.7 ohms |
| Coil Inductance (Le) | 1.1 mH |
| Mechanical Q (Qms) | 7.8 |
| Electrical Factor(Qes) | .44 |
| Total Q (Qts) | .42 |
| Comp. Equivalent Vol. (Vas) | 1.55 ft3 / 44 Liters |
| Voice Coil Overhang (Xmax) | 8.0mm |
| Effective Surface Area (Sd) | .0550 m2 |
| Diaphragm Mass (Mms) | 64 Grams |
| Reference Efficiency | 2.3% |
| BL Factor | 18 N/A |
|

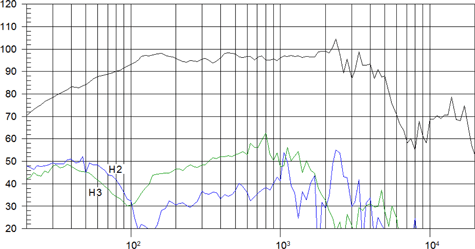

Low Frequency Response & Distortion Graph |
|
 |
|

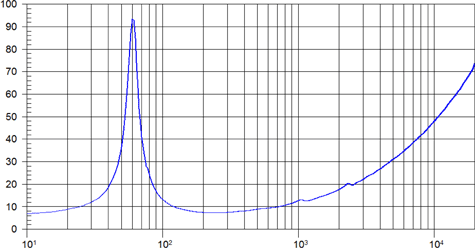

| Impedance Graph | |
 |
|

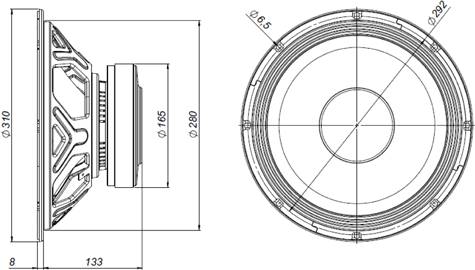

| Dimensional Drawing | |
 |
|
