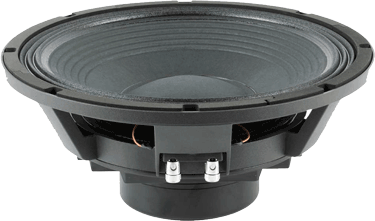

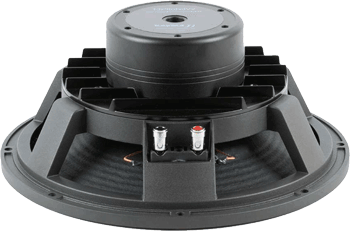

BEYMA 12P80NdV2 - 12" HIGH EFFICIENCY NEODYMIUM SPEAKER
|
|
|
BEYMA 12P80NdV2 - 12" HIGH EFFICIENCY NEODYMIUM SPEAKER |
|
THE BEYMA 12P80NdV2 IS GREAT FOR SPEAKER SYSTEMS THAT REQUIRE EXTENDED ARTICULATE MIDRANGE WITH TIGHT POWERFUL DEEP BASS! |
|
|
|
BEYMA 12P80NdV2 |
|
4 Ohms
Item Price: $499.95 |
|
|
8 Ohms
Item Price: $499.95 |
|
|
SPEAKER
MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
12" |
|
Impedance |
4 or 8
ohms |
|
AES
Power Rating |
700
Watts |
| Program Power |
1,400
Watts |
|
Frequency
Response |
50Hz
- 4.0kHz |
|
Sensitivity
(1W/1m) |
100 dB |
|
Voice
Coil Diameter |
4"
/ 100mm |
| Recom. Enclosure Volume | .7-2.24 ft3 / 20-60 Liters |
| Voice Coil Length | 20 mm |
| Air Gap Height | 12 mm |
| X Damage (peak to peak) | 52 mm |
|
Mounting Information |
|
|
Overall Diameter |
12.3" / 312mm |
|
Bolt
Circle Diameter |
11.77"
/ 298mm |
| Baffle Cutout Diameter | 11.1" / 283mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.14 ft3 / 4 Liters |
|
Overall
Depth |
5.2" / 132mm |
|
Net
Weight |
12.32 lb. / 5.6 kg. |
| Shipping Weight | 13.86 lb. / 6.3 kg. |
|
Materials |
|
| Basket | Cast Aluminum |
| Cone | High Stiffness Paper |
| Surround | Treated Cloth |
| Spider | Conex |
| Voice Coil | Copper |
| Metal Parts | Anti-Corrosion Coated |
| Magnet | High Energy Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 47 Hz |
|
Impedance
(Re) |
5 ohms |
| Coil Inductance (Le) | .9 mH |
| Mechanical Q (Qms) | 5.2 |
| Electrical Factor(Qes) | .2 |
| Total Q (Qts) | .19 |
| Comp. Equivalent Vol. (Vas) | 2.3 ft3 / 65 Liters |
| Voice Coil Overhang (Xmax) | 7.5mm |
| Effective Surface Area (Sd) | .0550 m2 |
| Diaphragm Mass (Mms) | 74 Grams |
| Reference Efficiency | 3.4% |
| BL Factor | 23.7N/A |
| Displacement Volume (Vd) | 412 cm3 |
|

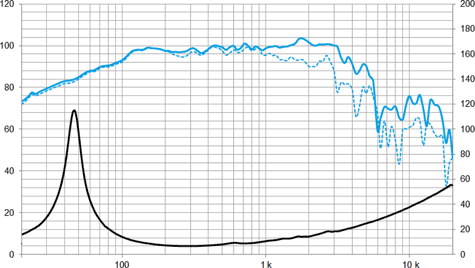

Low Frequency Response & Impedance Curve |
|
 |
|

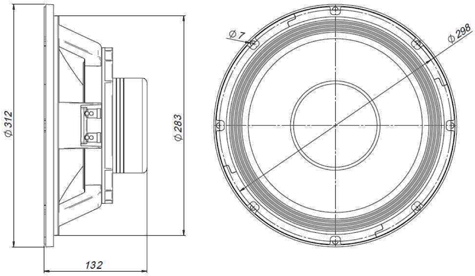

| Dimensional Drawing | |
 |
|
US Speaker, LLC
