BEYMA 12WCX/D - 12" COAXIAL SPEAKER
|
|
|
BEYMA 12WCX/D - 12" COAXIAL SPEAKER |
|
POWERFUL 12" COAXIAL DELIVERS A VERY SMOOTH DETAILED SOUND! |
|
|
|
BEYMA 12WCX/D |
|
Item Price: $159.95 |
|
|
COAXIAL MODEL |
12WCX/D |
|
Specifications |
|
|
Low Frequency Speaker |
|
|
Nominal
Basket Diameter |
12" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
350
Watts |
| Program Power |
700
Watts |
|
Frequency
Response |
70Hz
- 5.0kHz |
|
Sensitivity
(1W/1m) |
96dB |
|
Voice
Coil Diameter |
2.5"
/ 63.5mm |
| Voice Coil Length | 17 mm |
| Air Gap Height | 7 mm |
| X Damage (peak to peak) | 29 mm |
| BL Factor | 13.5 N/A |
|
Mounting Information |
|
|
Overall Diameter |
12.2"
/ 310mm |
| Bolt Circle Diameter |
11.5"
/ 292mm |
| Baffle Cutout Diameter | 11.0" / 280mm |
| No. Of Mounting Holes | 8 |
|
Overall
Depth |
5.1"
/ 130.6mm |
|
Net
Weight |
10.4 lb. / 4.7 kg. |
| Shipping Weight | 11.4 lb. / 5.2 kg. |
|
Materials |
|
| Basket | Steel |
| Cone | Treated Paper |
| Surround | Plasticised Cloth |
| Voice Coil | Edgewound Aluminum Ribbon |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 67 Hz |
| Impedance (Re) | 5.9 ohms |
| Coil Inductance (Le) | .96 |
| Mechanical Q (Qms) | 3.0 |
| Electrical Factor (Qes) | .71 |
| Total Q (Qts) | .58 |
| Comp. Equivalent Vol. (Vas) | 1.62 ft3 / 46 Liters |
| Voice Coil Overhang (Xmax) | 7.0mm |
| Surface Area of Cone (Sd)m2 | 0.055m2 |
| Moving Mass (Mms) | 52 Grams |
| Reference Efficiency | 1.9% |
| Displacement Volume (Vd) | 385cm3 |
|

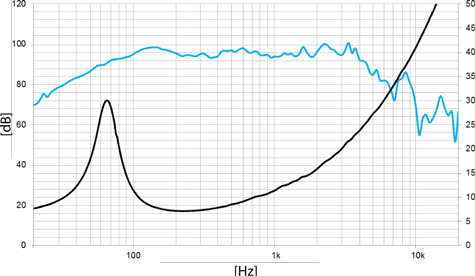

Frequency Response & Distortion Curves |
|
|
|
|
|

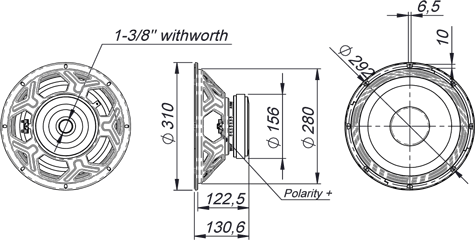

Mounting Dimensions |
|
|
|
|
