BEYMA 12XC30 - 12" COAXIAL SPEAKER
|
|
|
BEYMA 12XC30 - 12" COAXIAL SPEAKER |
|
THE NEW BEYMA 12XC30 COAXIAL SPEAKER IS SMOOTH SOUNDING & WEIGHS LESS THEN 12LBS.! |
|
|
|

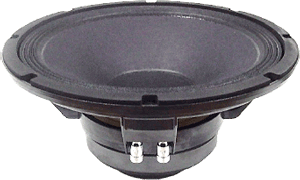

BEYMA 12XC30 |
|
No Longer Available |
|
|
Recommended 2-Way Crossover
FD2XC1 -
|
|
|
COAXIAL MODEL |
12XC30 |
|
Specifications |
|
|
Low Frequency Woofer |
|
|
Nominal
Basket Diameter |
12" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
250
Watts |
| Program Power |
500
Watts |
|
Frequency
Response |
45Hz
- 6.0kHz |
|
Sensitivity
(1W/1m) |
98dB |
|
Voice
Coil Diameter |
2.5"
/ 62.4mm |
| Recom. Enclosure Volume | 1.06-3.53 ft3 / 30-100 Liters |
| Voice Coil Length | 17 mm |
| Air Gap Height | 7 mm |
| X Damage (peak to peak) | 24 mm |
| BL Factor | 12.8 N/A |
| Magnetic Assembly Weight | 4.3 lb. / 9.6 kg. |
|
High Frequency Driver |
|
| Impedance | 16 ohms |
| Minimum Impedance | 10.9 ohms @ 4.5kHz |
|
AES
Power Rating |
40 Watts AES @ 1.5kHz |
| Frequency Response | 700Hz to 20kHz |
|
Sensitivity
(1W/1m) |
105dB |
| Dispersion | 90° |
| Voice Coil Diameter | 1.75" / 44.4mm |
| Flux Density | 1.8 T |
| BL Factor | 10.5 N/A |
|
Mounting Information |
|
|
Overall Diameter |
12.28"
/ 312mm |
| Bolt Circle Diameter |
11.6"
/ 294.5mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 10.92" / 277.5mm |
| - Rear Mount | 10.92" / 277.5mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.16 ft3 / 5.5 Liters |
|
Overall
Depth |
6.61"
/ 168mm |
|
Net
Weight |
11.44 lb. / 5.2 kg. |
| Shipping Weight | 12.98 lb. / 5.9 kg. |
|
Materials |
|
|
Low Frequency Woofer |
|
| Basket | Die-Cast Aluminum |
| Cone | Paper |
| Surround | Plasticised Cloth |
| Voice Coil | Aluminum |
| Magnet | Ferrite |
|
High Frequency Tweeter |
|
| Diaphragm | Polyester |
| Voice Coil | Edgewound Aluminum Ribbon |
| Voice Coil Former | Kapton |
| Magnet | Neodymium |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 43 Hz |
| Impedance (Re) | 6.3 ohms |
| Coil Inductance (Le) | 1.5 mH |
| Mechanical Q (Qms) | 7.4 |
| Electrical Factor (Qes) | .42 |
| Total Q (Qts) | .39 |
| Comp. Equivalent Vol. (Vas) | 5.19 ft3 / 147 Liters |
| Voice Coil Overhang (Xmax) | 5.0 mm |
| Surface Area of Cone (Sd)m2 | 0.055m2 |
| Reference Efficiency | 2.7% |
| Displacement Volume (Vd) | 272 cm3 |
|

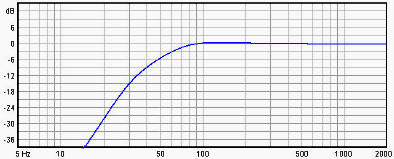

Predicted Low Frequency Response - Vb=70L, Fb=45Hz |
|
|
|
|
|

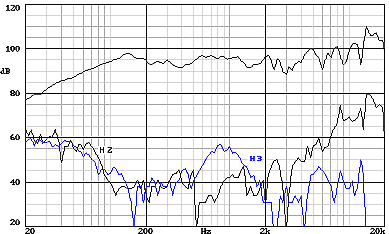

Frequency Response & Distortion Curves |
|
|
|
|
|

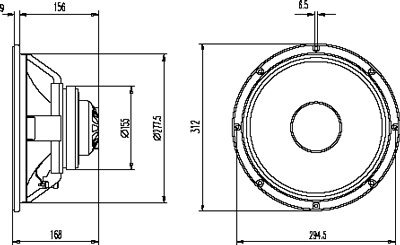

Mounting Dimensions |
|
|
|
|
