BEYMA 15100/R - 15" PRO WOOFER

THE BEYMA 15B100/R 15" SPEAKER HANDLES 150 WATTS RMS & 300 WATTS PROGRAM POWER HANDLING
FEATURES A LARGE 4" VOICE COIL, HIGH 97DB SPL EFFICIENCY & A MASSIVE POWERFUL MAGNET SYSTEM
EXTENDED LOWS DOWN TO 20HZ THAT IS NATURAL SOUNDING
FOR THE HIGHEST QUALITY MID & BASS APPLICATIONS IN STUDIO MONITORS & HIGH QUALITY HI-FI SPEAKERS

WORKS GREAT IN HIGH QUALITY STUDIO OR HI-FI CABINETS THAT REQUIRE DEEP WARM BASS!


No Longer Available

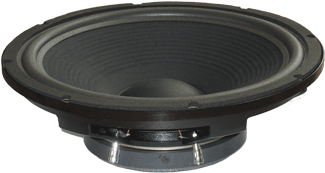

WOOFER MODEL - 15B100/R
Specifications
Nominal Basket Diameter	15" / 380mm
Impedance	8 ohms
RMS Power Rating	150 Watts
Program Power	300 Watts
Frequency Response	20Hz - 2.5kHz
Sensitivity (1W/1m)	97 dB
Voice Coil Diameter	4" / 100mm
BL Factor	16.2 N/A
Magnetic Assembly Weight	14.08 lb. / 6.4 kg.

Mounting Information
Overall Diameter	15.28" / 388mm
Bolt Circle Diameter	14.57" / 370mm
Baffle Cutout Diameter-
- Front Mount	14.25" / 362mm
- Rear Mount	13.98" / 355mm
No. Of Mounting Holes	8
Volume Displaced By Driver	0.21 ft3 / 6.0 Liters
Overall Depth	4.92" / 125mm
Net Weight	17.6 lb. / 8.0 kg.
Shipping Weight	19.8 lb. / 9.0 kg.

Materials
Basket	Die Cast Aluminum
Cone	Paper
Surround	Polyurethane Foam
Voice Coil	Edgewound Copper Ribbon
Magnet	Ferrite

Thiele-Small Parameters
Resonant Frequency (fs)	25 Hz
Impedance (Re)	5.2 ohms
Coil Inductance (Le)	3.32
Mechanical Q (Qms)	6.49
Electrical Factor(Qes)	.35
Total Q (Qts)	.32
Comp. Equivelant Vol. (Vas)	14.1 ft3 / 400 Liters
Voice Coil Overhang (Xmax)	3.0 mm
Reference Efficiency	1.75%
Displacement Volume	265 cm3

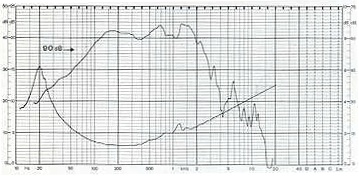

Frequency Response & Impedance Curve

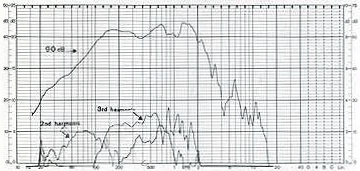

Distortion vs. Frequency - 2nd & 3rd Harmonic Level Raised 20dB

Predicted Low Frequency Response - Bass Reflex Cabinet, Vb=90 Liters & Fb=40Hz

Dimensional Drawing
