BEYMA 15CMV2 - 15" MID-BASS SPEAKER
|
|
|
BEYMA 15CMV2 - 15" MID-BASS SPEAKER |
|
THE BEYMA 15CMV2 IS A NICE 15 INCH SPEAKER FOR BASS GUITAR AND PA SPEAKER SYSTEMS! |
|
|
|

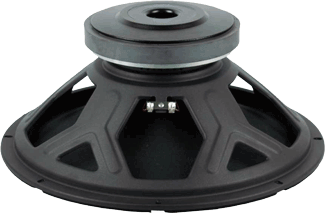

BEYMA 15CMV2 |
|
Item Price: $159.95 |
|
|
WOOFER
MODEL - |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
15" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
350 Watts |
| Program Power |
700
Watts |
|
Frequency
Response |
50Hz
- 4.0kHz |
|
Sensitivity
(1W/1m) |
97dB |
|
Voice
Coil Diameter |
3" /
76.2mm |
| Voice Coil Length | 17.5 mm |
| Air Gap Height | 7 mm |
| X Damage (peak to peak) | 35 mm |
| BL Factor | 18.8 N/A |
|
Mounting Information |
|
|
Overall Diameter |
15.1" / 385mm |
| Bolt Circle Diameter | 14.4" / 367mm |
| Baffle Cutout Diameter - | |
| - Front Mount | 13.9" / 353mm |
| No. Of Mounting Holes | 8 |
|
Overall
Depth |
6.5" / 165mm |
|
Net
Weight |
13.2 lb. / 6 kg. |
| Shipping Weight | 15.4 lb. / 7 kg. |
|
Materials |
|
| Basket | Steel |
| Cone | Paper |
| Surround | Treated Cloth |
| Voice Coil | Copper |
| Magnet | Ferrite |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 49 Hz |
| Impedance (Re) | 6.0 ohms |
| Coil Inductance (Le) | 1.2 mH |
| Mechanical Q (Qms) | 4.1 |
| Electrical Factor (Qes) | .55 |
| Total Q (Qts) | .49 |
| Comp. Equivalent Vol. (Vas) | 3.67 ft3 / 104 Liters |
| Voice Coil Overhang (Xmax) | 7 mm |
| Moving Mass (Mms) | 106 Grams |
| Surface Area of Cone (Sd)m2 | 0.088m2 |
| Reference Efficiency | 2.3% |
| Displacement Volume (Vd) | 616 cm3 |
|

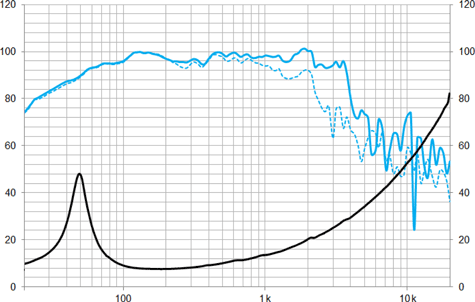

Frequency Response & Impedance Curve |
|
|
|
|
|
MOUNTING INFORMATION |
|
|
|
|
