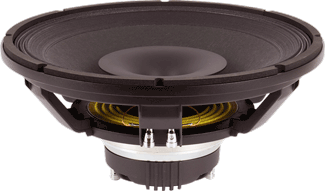

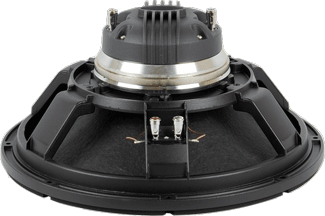

BEYMA 15CXA400ND - 15" NEODYMIUM COAXIAL SPEAKER
|
|
|
BEYMA 15CXA400ND - 15" NEODYMIUM COAXIAL SPEAKER |
|
EXTREMELY SMOOTH HIGHS THANKS TO ITS' SPECIAL MYLAR/TITANIUM DIAPHRAGM. HORN DELIVERS A 60° CONTROLLED DISPERSION! |
|
|
|
NEW BEYMA 15CXA400Nd |
|
Item Price: $729.95 |
|
|
Recommended 2-Way Crossover
Beyma FD2XA -
|
|
|
WOOFER
MODEL |
|
|
Low Frequency Specifications |
|
|
Nominal
Basket Diameter |
15" |
|
Impedance |
8
ohms |
|
AES Power Rating |
400 watts |
| Program Power Rating |
800
watts |
|
Frequency Range |
35Hz
- 1.5kHz |
|
Sensitivity
(1W/1m) |
98dB |
|
Voice
Coil Diameter |
4"
/ 100mm |
| BL Factor | 19.04 N/A |
| Voice Coil Length | 16 mm |
| Air Gap Height | 9 mm |
| X Damage (peak to peak) | 28 mm |
| Magnet Weight | 9.24 lb. / 4.2 kg. |
|
High Frequency Specifications |
|
| Rated Impedance | 16 ohms |
| AES Power Rating | 90 watts @ 1.0kHz |
| Program Power Rating | 180 watts @ 1.0kHz |
|
Frequency R |
800Hz - 20kHz |
| Sensitivity (1W/1m) | 105dB SPL |
| Voice Coil Diameter | 2.8" / 71.1mm |
| Flux Density | 1.6T |
| Dispersion | 60° conical |
|
Mounting Information |
|
|
Overall Diameter |
15.28" / 388mm |
| Bolt Circle Diameter | 14.57" / 370mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 13.76" / 349.5mm |
| - Rear Mount | 14.17" / 360mm |
|
No.
Of Mounting Holes |
8 |
| Volume Displaced By Driver | 0.25 ft3 / 7.0 Liters |
| Overall Depth | 7.09" / 180mm |
| Net Weight | 15.92 lb. / 7.22 kg. |
| Shipping Weight | 17.86 lb. / 8.1 kg. |
|
Low Frequency Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Waterproof Paper |
| Surround | Plasticised Cloth |
| Voice Coil | Edgewound Aluminum Ribbon |
| Demodulation Ring | Aluminum |
| Magnet | Neodymium |
|
High Frequency Materials |
|
| Diaphragm | Titanium |
| Voice Coil | Edgewound Aluminum Ribbon |
| Dome | Titanium |
| Surround | Mylar |
| Voice Coil Former | Kapton |
| Demodulation Ring | Aluminum |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (Fs) | 40 Hz |
| Impedance (Re) | 6.6 ohms |
| Mechanical Q (Qms) | 4.37 |
| Electrical Factor(Qes) | .39 |
| Total Q (Qts) | .36 |
| Comp. Equivelant Vol. (Vas) |
6.92 ft3 / 196 Liters |
| Voice Coil Overhang (Xmax) | 6.0 mm |
| Effective Surface Area | .088m2 |
| Moving Mass (Mms) | 84 Grams |
| Reference Efficiency | 3.3% |
| Displacement Volume | 350 cm3 |
| Voice Coil Inductance (Le @ 1kHz) | .9mH |
|

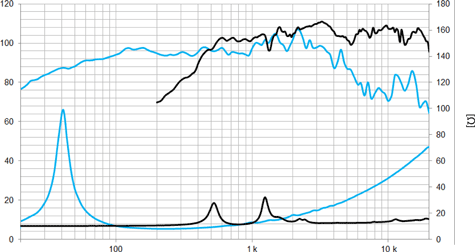

Low & High Frequency Response & Impedance Curve |
|
 |
|

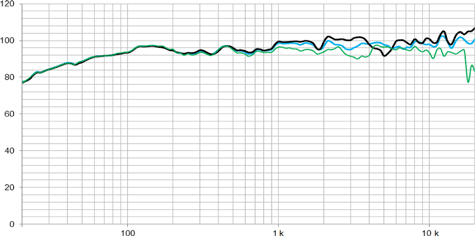

| Filtered Response | |
 |
|

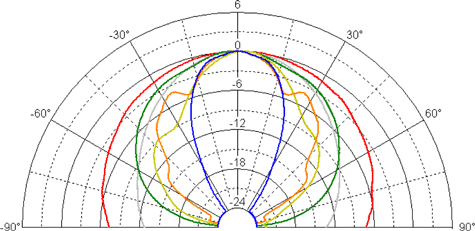

| Polar Pattern | |
|
|

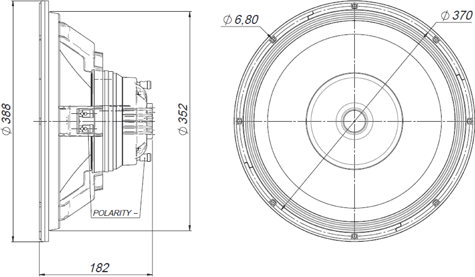

| Mounting Dimensions | |
 |
|
