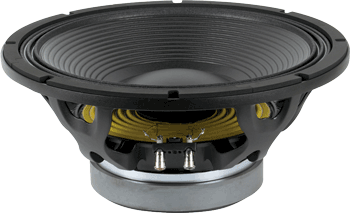

BEYMA 15LEX1000FE - 15" HIGH POWER WOOFER
|
|
|
BEYMA 15LEX1000FE - 15" HIGH POWER WOOFER |
|
THE BEYMA 15LEX1000Fe HANDLES A HIGH POWER OF 2,000 WATTS PROGRAM W/ A 11.0MM XMAX! |
|
|
|
BEYMA 15LEX1000Fe |
|
4 Ohm Version
Item Price: $399.95 |
|
|
8 Ohm Version
Item Price: $399.95 |
|
|
WOOFER
MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
15" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
1,000
Watts |
| Program Power |
2,000
Watts |
|
Frequency
Response |
40Hz
- 1.0kHz |
|
Sensitivity
(1W/1m) |
97dB |
|
Voice
Coil Diameter |
3.5"
/ 88.9mm |
| Voice Coil Length | 27 mm |
| Air Gap Height | 12 mm |
| X Damage (peak to peak) | 51 mm |
| BL Factor | 23.2 N/A |
|
Mounting Information |
|
|
Overall Diameter |
15.47" / 393mm |
| Bolt Circle Diameter | 14.7" / 373mm |
| Baffle Cutout Diameter- | |
| - Rear Mount | 13.9" / 352mm |
| No. Of Mounting Holes | 8 |
| Overall Depth | 7.2" / 182mm |
| Volume Displaced By Speaker | .18 cu. ft. / 5 Liters |
|
Net
Weight |
24.2 lb. / 11 kg. |
|
Shipping
Weight |
26.4 lb. / 12 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Waterproof Front & Back Paper |
| Surround | Treated Cloth |
| Voice Coil | Edgewound Copper Wire |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 41 Hz |
| Impedance (Re) | 5.4 ohms |
| Coil Inductance (Le) | 1.7 mH |
| Mechanical Q (Qms) | 5.1 |
| Electrical Factor (Qes) | .37 |
| Total Q (Qts) | .34 |
| Comp. Equivelant Vol. (Vas) | 4.1 ft3 / 116 Liters |
| Voice Coil Overhang (Xmax) | 11 mm |
| Moving Mass (Mms) | 142 Grams |
| Surface Area of Cone (Sd)m2 | 0.088m2 |
| Reference Efficiency | 2.1% |
| Displacement Volume (Vd) | 880 cm3 |

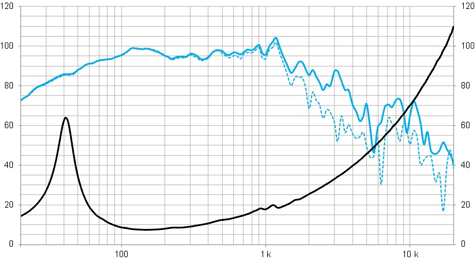

| Frequency Response & Free Air Impedance Curve | |
 |
|

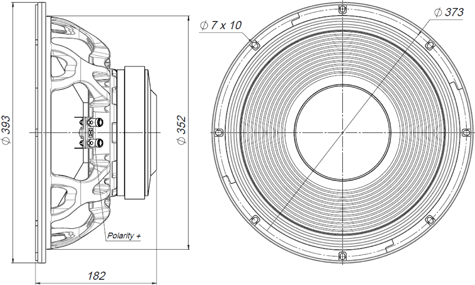

| Mounting Dimensions | |
 |
|
