BEYMA 15P1000 - 15" HIGH POWER WOOFER
|
|
|
BEYMA 15P1000 - 15" HIGH POWER WOOFER |
|
WATER RESISTANT CONE & POWERFUL 2,000 WATT PROGRAM WOOFER! |
|
|
|
BEYMA 15P1000 |
|
No Longer Available |
|
|
Large X DAMAGE (peak to peak) of 45mm & a 30mm voice coil length! |
|
|
WOOFER MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
15" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
1,000
Watts |
| Program Power |
2,000
Watts |
|
Frequency
Response |
25Hz
- 1.2kHz |
|
Sensitivity
(1W/1m) |
97dB |
|
Voice
Coil Diameter |
4.5" / 114mm |
| Recom. Enclosure Volume | 1.4-5.3 ft3 / 40-150 Liters |
| Voice Coil Length | 30 mm |
| Air Gap Height | 14.5 mm |
| X Damage (peak to peak) | 45 mm |
| BL Factor | 26 N/A |
| Magnetic Assembly Weight | 23.8 lb. / 10.8 kg. |
|
Mounting Information |
|
| Overall Diameter | 15.28" / 388mm |
|
Bolt
Circle Diameter |
14.57" / 370mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 13.86" / 352mm |
| - Rear Mount | 13.98" / 355mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.25 ft3 / 7 Liters |
|
Overall
Depth |
6.93" / 176mm |
|
Net
Weight |
27.7 lb. / 12.6 kg. |
| Shipping Weight | 29.9 lb. / 13.6 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Specially Treated Paper |
| Surround | Treated Cloth |
| Voice Coil | Edgewound Copper Wire |
| Spider | Nomex/Polycotton Dual Spider |
| Magnet | High Currie Temperature Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 35 Hz |
|
Impedance
(Re) |
6.2 ohms |
| Coil Inductance (Le) | 6.0 mH |
| Mechanical Q (Qms) | 12.8 |
| Electrical Factor(Qes) | .30 |
| Total Q (Qts) | .29 |
| Comp. Equivalent Vol. (Vas) | 5.16 ft3 / 146 Liters |
| Voice Coil Overhang (Xmax) | 8.0 mm |
| Surface Area of Cone (Sd)m2 | 0.0880m2 |
| Reference Efficiency | 2.0% |
| Displacement Volume (Vd) | 700 cm3 |

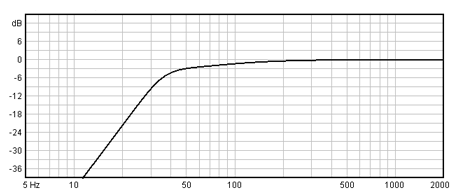

| Low Freq. Response: Bass Reflex Cabinet-Vb=100L, Fb=35Hz | |
 |
|
| Frequency Response & Distortion Curves | |
 |
|

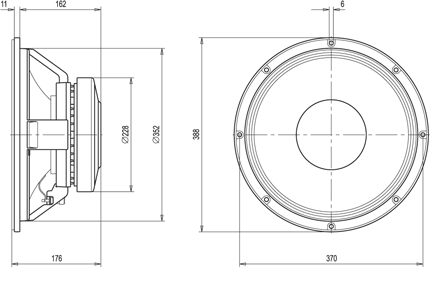

| Mounting Dimensions | |
 |
|
