BEYMA 15P1000FeV2 - 15" HIGH POWER WOOFER
|
|
|
BEYMA 15P1000FeV2 - 15" HIGH POWER WOOFER |
|
BEYMA 15P1000FeV2 15" HAS A STRONG & TIGHT POWERFUL BASS WITH 2,000 WATT PROGRAM WOOFER! |
|
|
|
BEYMA 15P1000FeV2 |
|
Item Price: $439.95 |
|
|
WOOFER MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
15" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
1,000
Watts |
| Program Power |
2,000
Watts |
|
Frequency
Response |
45Hz
- 2kHz |
|
Sensitivity
(1W/1m) |
98dB |
|
Voice
Coil Diameter |
4" / 100mm |
| Recom. Enclosure Volume | 1.06-4.24 ft3 / 30-120 Liters |
| Voice Coil Length | 20 mm |
| Air Gap Height | 12 mm |
| X Damage (peak to peak) | 52 mm |
| BL Factor | 27.4 N/A |
|
Mounting Information |
|
| Overall Diameter | 15.28" / 388mm |
|
Bolt
Circle Diameter |
14.57" / 370mm |
| Baffle Cutout Diameter- | 13.9" / 352mm |
| No. Of Mounting Holes | 8 |
|
Overall
Depth |
6.9" / 175mm |
|
Net
Weight |
28.9lb. / 13.1 kg. |
| Shipping Weight | 31.1 lb. / 14.1 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Waterproof Front & Back Paper |
| Surround | Treated Cloth |
| Voice Coil | Copper Wire |
| Spider | Conex Dual Spider |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 45 Hz |
|
Impedance
(Re) |
5.2 ohms |
| Coil Inductance (Le) | 1.5 mH |
| Mechanical Q (Qms) | 5.9 |
| Electrical Factor(Qes) | .31 |
| Total Q (Qts) | .3 |
| Comp. Equivalent Vol. (Vas) | 2.85 ft3 / 80.7 Liters |
| Voice Coil Overhang (Xmax) | 8.0 mm |
| Surface Area of Cone (Sd)m2 | 0.0855m2 |
| Reference Efficiency | 2.4% |
| Displacement Volume (Vd) | 684 cm3 |

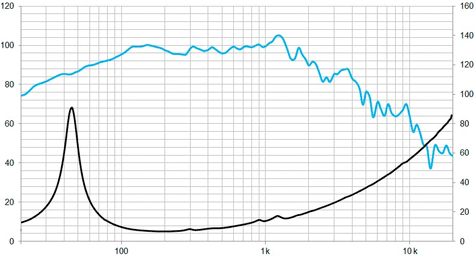

| Frequency Response & Impedance Curve | |
 |
|

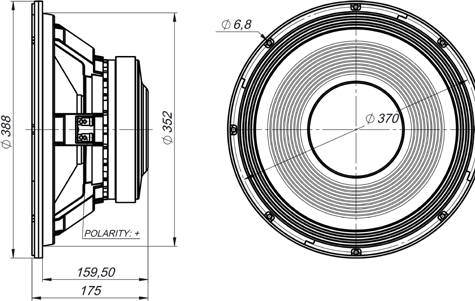

| Mounting Dimensions | |
 |
|
