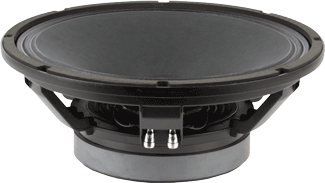

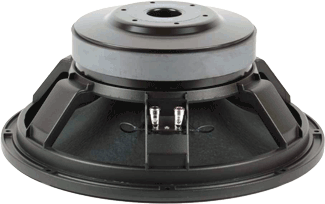

BEYMA 15P80FeN - 15" HIGH POWER WOOFER
|
|
|
BEYMA 15P80FeN - 15" HIGH POWER WOOFER |
|
WIDE FREQUENCY RANGE FROM 30HZ TO 4.0KHZ, HIGH EFFICIENCY MIDRANGE W/ STRONG TIGHT LOWS & WATERPROOF CONE FOR OUTDOOR APPLICATIONS! |
|
|
|
BEYMA 15P80FeN |
|
New - 4 Ohms
Item Price: $425.95 |
|
|
8 Ohms
Item Price: $425.95 |
|
|
WOOFER MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
15" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
800
Watts |
| Program Power |
1,600
Watts |
|
Frequency
Response |
30Hz
- 4kHz |
|
Sensitivity
(1W/1m) |
101dB |
|
Voice
Coil Diameter |
4" / 100mm |
| Recom. Enclosure Volume | 1.4-5.3 ft3 / 40-150 Liters |
| Voice Coil Length | 20 mm |
| Air Gap Height | 12 mm |
| X Damage (peak to peak) | 52 mm |
| BL Factor | 22.1 N/A |
|
Mounting Information |
|
| Overall Diameter | 15.28" / 388mm |
|
Bolt
Circle Diameter |
14.57" / 370mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 13.76" / 349.5mm |
| - Rear Mount | 13.98" / 355mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.19 ft3 / 5.5 Liters |
|
Overall
Depth |
6.42" / 163mm |
|
Net
Weight |
27.56 lb. / 12.5 kg. |
| Shipping Weight | 29.76 lb. / 13.5 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Waterproof Paper |
| Surround | Treated Cloth |
| Voice Coil | Edgewound Copper Wire |
| Spider | Conex Spider |
| Magnet | High Currie Temperature Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 32 Hz |
|
Impedance
(Re) |
5.3 ohms |
| Coil Inductance (Le) | 1.2 mH |
| Mechanical Q (Qms) | 5.5 |
| Electrical Factor(Qes) | .19 |
| Total Q (Qts) | .18 |
| Comp. Equivalent Vol. (Vas) | 10.77 ft3 / 305 Liters |
| Voice Coil Overhang (Xmax) | 7.5 mm |
| Surface Area of Cone (Sd)m2 | 0.088m2 |
| Diaphragm Mass (Mms) | 88 Grams |
| Reference Efficiency | 5.0% |
| Displacement Volume (Vd) | 660 cm3 |

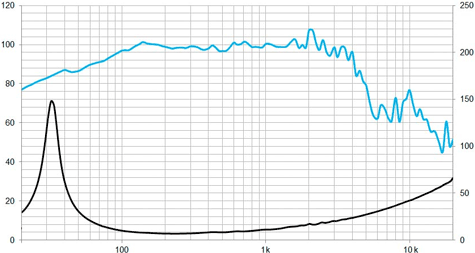

| Frequency Response & Impedance Curve | |
 |
|

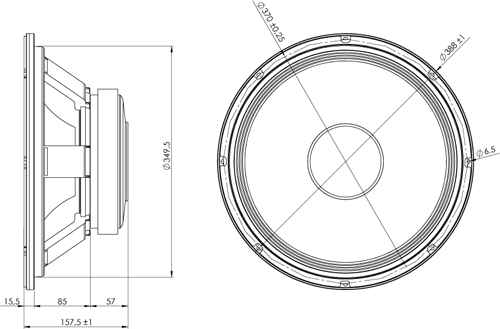

| Mounting Dimensions | |
 |
|
